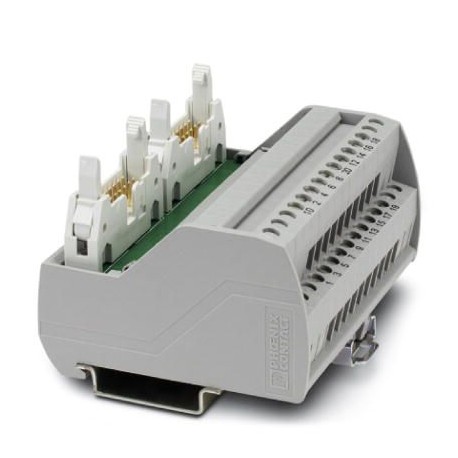

PHOENIX CONTACT VIP-2/SC/2FLK14/AB-1756 VIP-2/SC/2FLK14/AB-1756 2322333 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VIP-2/SC/2FLK14/AB-1756 2322333 PHOENIX CONTACT Passive module

VIP-2/SC/2FLK14/AB-1756

2322333

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE COMPACT LINE interface module for Allen-Bradley® ControlLogix® systems, with ControlLogix-specific labeling; number of poles 2 x 14; Module width 80.6 mm.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2322333
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 475 (C-5-2017)
GTIN4046356451734
Weight per Piece (excluding packing)158.600 g
Custom tariff number85366990
Country of originUS (United States)

Dimensions

Width80.6 mm
Height65.5 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage60 V AC/DC
Max. perm. current (per branch)1 A
Number of positions14
Status displayNo
Mounting positionany

Connection data for connection 1

Connection nameField level
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections2
Number of positions14
Pitch2.54 mm

Supported controller

ControllerALLEN-BRADLEY ControlLogix
- suitable I/O card1756-IN16
1756-IA8D
1756-IA16
1756-IB16
1756-IC16
1756-OB16E
1756-IF6I
1756-IR6I
1756-IT6I
1756-OF4
1756-OF6CI
1756-OF6VI
1756-OF8
1756-PLS
1756-IF6H
1756-IF6CIS
1756-OF8H
ControllerHONEYWELL Experion PKS C200
- suitable I/O cardTC-IDX 081
TC-IDA 161
TC-IAH 061
TC-IXR 061
TC-IXL 061
TC-OAH 061
TC-OAV 061
TC-OAV 081

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated surge voltage0.6 kV
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2322333 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 14
Rated voltage (EF000228) 25 V
Rated current (EF000227) 1 A
Depth (EF000049) 56 mm
Width (EF000008) 80.6 mm
Height (EF000040) 65.5 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
