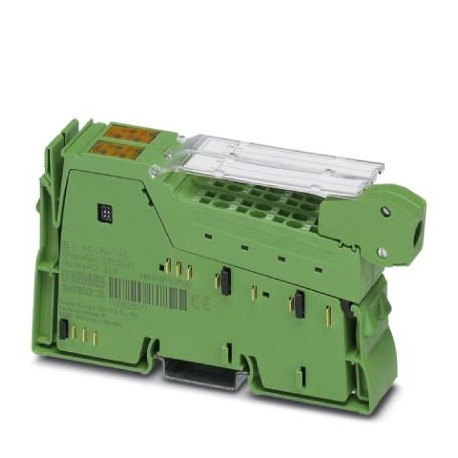

IB IL RS UNI-PAC 2700893 PHOENIX CONTACT Inline function terminal

IB IL RS UNI-PAC

2700893

PHOENIX CONTACT

1 Pcs.

Inline function terminal Inline, Communication module, interface:RS-232, RS-485, RS-422, local bus transmission rate:500 kBit/s, protection index:IP20, including inline connectors and marking fields

Automation > Fieldbus, decentr. periphery - communication module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2700893
Packing unit1 pc
Catalog pagePage 172 (C-6-2017)
GTIN4046356657129
Weight per Piece (excluding packing)135.000 g
Custom tariff number85389091
Country of originDE (Germany)

Note

Utilization restriction1

Dimensions

Dimensional drawing
Width24.4 mm
Height135 mm
Depth71.5 mm

Connection data

DesignationInline connector
Connection methodSpring-cage connection
Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.16
Stripping length8 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
80 kPa ... 106 kPa (up to 3000 m above sea level, in ATEX Zone 2)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP20

General

Mounting typeDIN rail
Net weight135 g
Note on weight specificationswith connectors

Interfaces

DesignationInline local bus
No. of channels2
Connection methodInline data jumper
Transmission speed500 kbps
InterfaceRS-232, RS-485, RS-422
Connection methodSpring-cage connection
Transmission physicsCopper
Data bits5 ... 8
Stop bits1 or 2
Input buffer4 kByte
Output buffer1 kByte

Inline potentials

DesignationCommunications power (UL)
Supply voltage7.5 V DC (via voltage jumper)
Current consumptiontyp. 78 mA
max. 90 mA (all connections of the serial interface are short-circuited)
Power consumptiontyp. 585 mW (at UL)
Supply voltage24 V DC (via voltage jumper)
Current consumptiontyp. 15 mA
max. 25 mA

Serial input/output channel

ParityEven, odd or no parity
Transmission typeTransparent mode, end-to-end mode, XON/XOFF

Electrical isolation

Test sectionSerial interface/7.5 V supply (bus logic) 500 V AC 50 Hz 1 min.
Serial interface/24 V supply UM500 V AC 50 Hz 1 min.
Serial interface/functional earth ground 500 V AC 50 Hz 1 min.
7.5 V supply (bus logics) / functional earth ground 500 V AC 50 Hz 1 min.
24 V supply (UM)/functional earth ground 500 V AC 50 Hz 1 min.

Standards and Regulations

Protection classIII, IEC 61140, EN 61140, VDE 0140-1

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2700893 PLC's (EC001604)
Feature Name Feature Value
Supply voltage DC (EF007534) 24 V
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for EtherNet/IP (EF007521) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) Yes
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 24.3 mm
Height (EF000040) 136.044074 mm
Depth (EF000049) 70.510188 mm

Product Datasheet
