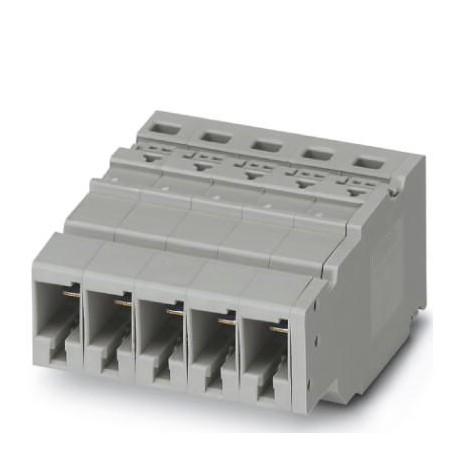

PPC 6/5 3000697 PHOENIX CONTACT COMBI receptacle

PPC 6/5

3000697

PHOENIX CONTACT

25 Pcs.

COMBI receptacle COMBI coupling, rated voltage: 1000 V, rated current: 41 A, number of connections: 2, number of poles: 5, connection type: Push-in connection, 1st floor, Sizing cross-section: 6 mm², cross-section: 0.5 mm² - 10 mm², color: gray

Connectors > Terminal block connector
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3000697
Packing unit25 pc
Minimum order quantity25 pc
NoteMade to Order (non-returnable)
Catalog pagePage 306 (C-1-2017)
GTIN4046356751988
Weight per Piece (excluding packing)39.520 g
Custom tariff number85366990
Country of originPL (Poland)

General

Number of positions5
Number of levels1
Number of connections2
Potentials5
Nominal cross section6 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Maximum load current41 A (with 6 mm² conductor cross section)
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.31 W
Maximum load current41 A (with 6 mm² conductor cross section)
Nominal current IN41 A
Nominal voltage UN1000 V
Open side panelYes
Insertion/withdrawal cycles mechanical100
Result of surge voltage testTest passed
Surge voltage test setpoint9.8 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint4.26 kV
Short circuit stability resultTest passed
Conductor cross section short circuit testing6 mm²
Short-time current0.72 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 1, class B, body mounted
Test frequencyf1= 5 Hz to f2= 150 Hz
ASD level0.964 (m/s2)2/Hz
Acceleration0.58 g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration5 g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width41 mm
End cover width2.2 mm
Length47 mm
Height24.7 mm
Pitch8.2 mm

Connection data

Connection methodPush-in / plug connection
Stripping length12 mm
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.10 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.8
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²
Internal cylindrical gageA5

Standards and Regulations

Connection in acc. with standardIEC 61984
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3000697 Terminal blocks (EC002021)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Total number of poles (without ground contact) (EF006240) 2
Width (EF000008) 42.95 mm
Connectable (EF006169) No
Number of poles (EF001391) 5
