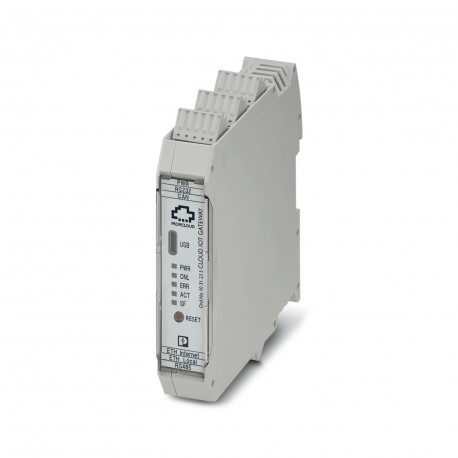

PHOENIX CONTACT CLOUD IOT GATEWAY CLOUD IOT GATEWAY 1031235 PHOENIX CONTACT IoT gateway View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CLOUD IOT GATEWAY 1031235 PHOENIX CONTACT IoT gateway

CLOUD IOT GATEWAY

1031235

PHOENIX CONTACT

1 Pcs.

IoT gateway Cloud IoT gateway for integration of new and existing installations without additional engineering tasks. By easily integrating processes with protocols such as Modbus/TCP, sensor and process data are collected, processed and monitored in Proficloud.

Automation > Fieldbus, decentr. periphery - communication module
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1031235
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626534169
Weight per Piece (excluding packing)144.500 g
Custom tariff number85176200
Country of originDE (Germany)

Dimensions

Width22.5 mm
Height99 mm
Depth114.5 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 55 °C up to 2000 m above mean sea level
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)30 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)5 % ... 95 %
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)58 kPa ... 106 kPa (up to 4500 m above mean sea level)
Shock30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27

Mechanical design

Weight144.5 g
Note on weight specificationswith connectors

Data interfaces

InterfaceRS-232
Connection methodCOMBICON connectors
InterfaceRS-485
Number1
Connection methodCOMBICON connectors
InterfaceEthernet
Number2
Connection methodRJ45
Transmission speed100 Mbps
InterfaceService
Number1
Connection methodUSB type C

Power supply

Typical current consumption200 mA
Supply voltage24 V DC -20 % / +15 %
Supply voltage range18 V DC ... 30 V DC

General data

ProcessorARM®Cortex®-A8 1x 600 MHz

IEC 61131 runtime system

Realtime clockYes

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Interference emissionNoise emission test according to EN 61000-6-3 Class B
Immunity to surgeNoise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical), fieldbus cable shield: ±1 kV
Immunity to burstNoise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV
Immunity to EFNoise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
Immunity to ESDNoise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
Immunity to conducted interferenceNoise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A; Test voltage 10 V
Shock30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27
Shock (operation)10g (Bump endurance test according to EN 60068-2-29)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
