View larger
Images are for illustrative purposes only. Please refer to data sheet for details

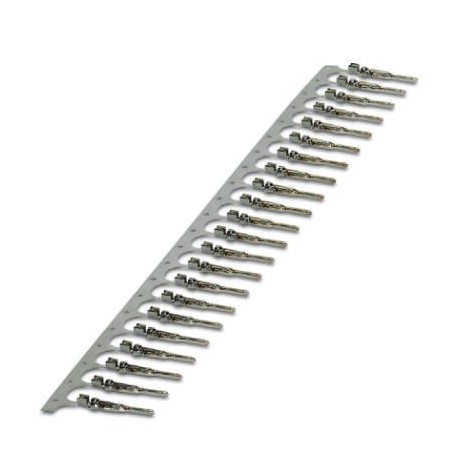

CK1,6-BR-1,00ST OIC AG 1004380 PHOENIX CONTACT Crimp contact
CK1,6-BR-1,00ST OIC AG
1004380
PHOENIX CONTACT
7000 Pcs.
Crimp contact
Crimp contact, contact diameter: 1.6 mm, stamped, Male, contact material: Cu alloy, nickel-plated, contact surface: silver, connection cross-section: 0.34 mm² ... 1 mm², AWG 22 ... 17, Tape material
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1004380 |
|---|---|
| Packing unit | 7000 pc |
| Minimum order quantity | 7000 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626472393 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85369010 |
| Country of origin | TR (Turkey) |
Mechanical characteristics
| Conductor cross section | 0.34 mm² ... 1 mm² |
|---|---|
| Connection cross section AWG | 22 ... 17 |
| Stripping length of the individual wire | 4 mm |
| Contact diameter | 1.6 mm |
| Insertion/withdrawal cycles | ≥ 50 |
General
| Note | For use only in Phoenix Contact contact insert designs: HC-DD…-I-CT, HC-M-12-CT, HC-M-17-CT, HC-D7-I-CT, HC-D8-I-CT, HC-Q07-I-CT, HC-Q12-I-CT |
|---|---|
| Type | Male contact for taped products |
| Connection method | Crimp connection |
| Contact type | rolled |
| Assembly instructions | max. crimping speed for 1 mm² corresponds to a cycle time of 1 second |
| Connection | A tool for automatically processing these contacts on crimping devices can be obtained from U.Kolb GmbH, Neuer Weg 32, 71111 Waldenbuch, Germany, [email protected], Tel. +49-(0)7151-7371-0. Order No.: 20.2001-1004380/4381, lubricant for crimp contacts: KNT200 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 125 °C |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.34 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.34 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Strip length (EF006824) | 4 mm |
| Type of contact (EF012213) | Rolled |
| Diameter plug-in contact (EF007320) | 1.6 mm |
| Material contact (EF007544) | Other copper alloys |
| Material of contact surface (EF004020) | Silver |
| Min. number of insertion cycles (EF012212) | 50 |
