> PHOENIX CONTACT > Over Current Protection > 2800905

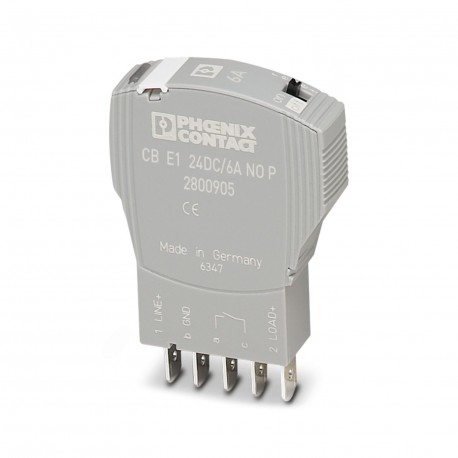

PHOENIX CONTACT CB E1 24DC/6A NO P CB E1 24DC/6A NO P 2800905 PHOENIX CONTACT Electronic device circuit breaker View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CB E1 24DC/6A NO P 2800905 PHOENIX CONTACT Electronic device circuit breaker

CB E1 24DC/6A NO P

2800905

PHOENIX CONTACT

1 Pcs.

Electronic device circuit breaker Interruption. Protec. Electronic, 1 pole, active current limiter, 1 NO contact, connector for base element. Electronic circuit breaker, 1-pos., active current limitation, 1 N/O contact, plug for base element.

Automation > Device circuit breaker
Over Current Protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralWhen mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor).
Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC).
Parallel connection of multiple circuit breakers is not permitted.
Product properties
Product typeDevice circuit breakers
Product familyCB E
TypeMale
Number of positions1
No. of channels1
Data management status
Article revision03
Insulation characteristics
Pollution degree2
Electrical properties
General
Operating voltage24 V DC
18 V DC ... 30 V DC
Nominal current IN6 A
Rated surge voltage0.5 kV
Tripping methodE (electronic)
Required backup fusenot required, integrated failsafe element
Dielectric strengthmax. 30 V DC (Load circuit)
Active current limitationtyp. 1.25 x IN
Fuseelectronic
Closed circuit current I0typ. 8 mA (When switched on)
typ. 17 mA (With alarm output)
Power dissipation1.19 W (Nominal operation)
Temperature derating5 A (at 50 °C)
MTBF (IEC 61709, SN 29500)8320000 h (at 25 °C with 80 % load)
7410000 h (at 40 °C with 80 % load)
Voltage drop130 mV (at IN)
Fail-safe element10 A DC
Load circuit
Shutdown time130 ms (see time/current characteristic curve)
Undervoltage switch-off< 14 V (typ. OFF)
> 17 V (typ. ON)
Max. capacitive load20000 µF
Switch-on delaytyp. 2 ms
Auxiliary contact
Contact connection typefloating signal contact
Minimum operating voltage UminDC10 V DC
Maximum operating voltage UmaxDC30 V DC
Minimum operating current Imin10 mA
Max. operating current Imax0.5 A
Connection data
Connection methodpluggable
Dimensions
Dimensional drawingsdiglxmoln.jpg
Width12.3 mm
Height45 mm
Depth52 mm
Complete module width12.3 mm
Complete module height90 mm
Complete module depth77.3 mm
Material specifications
Colorgray (RAL 7042)
black (RAL 9005)
Flammability rating according to UL 94V-0
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP30 (Actuation area)
Ambient temperature (operation)-25 °C ... 50 °C (non-condensing)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Humidity test96 h, 95 % RH, 40 °C
Vibration (operation)3g (according to IEC 60068-2-6, Test Fc)
Approvals
UL approval
IdentificationUL Listed UL 508
UL Recognized UL 2367
Shipbuilding approval
IdentificationDNV GL
Standards and regulations
Standard designationEMV
Standards/specificationsEN 61000-6-3
NoteInterference emission
Standard designationEMV
Standards/specificationsEN 61000-6-2
NoteNoise immunity
Mounting
Mounting typeon base element

ETIM for 2800905 Circuit breakers and fuses (EC003538)
Feature Name Feature Value
Inflammability class of insulation material according to UL94 (EF002521) Other
Number of poles (EF001391) 1
Construction type (EF000767) Plug
Width (EF000008) 12.3 mm
Height (EF000040) 45 mm
Depth (EF000049) 52 mm
Mounting method (EF000003) Other
Operating voltage (EF000111) 30 V
Nominal current (EF000001) 6 A
Active current limitation x IN (EF011922) 1.25
Fuse type (EF011923) Electronic
Fail safe element (EF011924) 10 A
Switch-off time (EF011925) 0.13 ms
Max. capacitive load (EF011926) 0.02 µF
With remote signalling contact (EF000422) No
Ambient temperature during operating (EF007515) -25 °C
