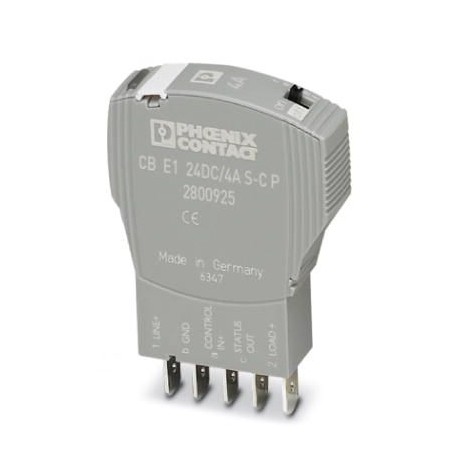

PHOENIX CONTACT CB E1 24DC/4A S-C P CB E1 24DC/4A S-C P 2800925 PHOENIX CONTACT Electronic device circuit breaker View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CB E1 24DC/4A S-C P 2800925 PHOENIX CONTACT Electronic device circuit breaker

CB E1 24DC/4A S-C P

2800925

PHOENIX CONTACT

1 Pcs.

Electronic device circuit breaker Interruption. Protec. Electronic, 1 pole, active current limiter, status output and control input, connector for base element.

Automation > Device circuit breaker
Over Current Protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2800925
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 323 (C-4-2017)
GTIN4046356690812
Weight per Piece (excluding packing)35.500 g
Custom tariff number85362010
Country of originDE (Germany)

Dimensions

Height45 mm
Width12.3 mm
Depth52 mm
Complete module height90 mm
Complete module width12.3 mm
Complete module depth77.3 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 50 °C (non-condensing)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Humidity test96 h, 95 % RH, 40 °C
Vibration (operation)3g (In accordance with IEC 60068-2-6, Test Fc)
Degree of protectionIP30 (Actuation area)

General

Installation instructionsWhen mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor).
Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC).
Parallel connection of multiple circuit breakers is not permitted.
Flammability rating according to UL 94V0
Mounting typeon base element
Colorgray
Number of positions1
Degree of pollution2
TypeMale

Electrical data

Fuse typeelectronic
Rated surge voltage0.5 kV
Operating voltage24 V DC
18 V DC ... 30 V DC
Nominal current IN4 A
Active current limitationtyp. 1.25 x IN
Closed circuit current I0typ. 8 mA (When switched on)
typ. 11 mA (With status output)
Power dissipation0.66 W (Nominal operation)
Temperature derating4 A (at 50 °C)
Tripping methodE (electronic)
Required backup fusenot required, integrated failsafe element
Dielectric strengthmax. 30 V DC (Load circuit)
Voltage drop100 mV (at IN)
Shutdown time load circuit200 ms (see time/current characteristic curve)
Undervoltage shutdown load circuit< 14 V (typ. OFF)
> 17 V (typ. ON)
Max. capacitive load load circuit20000 µF
Output voltage status output24 V DC
Output current status outputmax. 0.2 A (Short-circuit-proof)
Auxiliary type of contactPositive-switching signal output

Standards and Regulations

Standards/specificationsUL 2367 UL recognized
UL 508 UL/C-UL listed
EMV EN 61000-6-3 Interference emission
EMV EN 61000-6-2 Noise immunity

Classifications


ETIM for 2800925 Circuit breakers and fuses (EC003538)
Feature Name Feature Value
Inflammability class of insulation material according to UL94 (EF002521) Other
Number of poles (EF001391) 1
Construction type (EF000767) Plug
Width (EF000008) 12.3 mm
Height (EF000040) 45 mm
Depth (EF000049) 52 mm
Mounting method (EF000003) Other
Operating voltage (EF000111) 30 V
Nominal current (EF000001) 4 A
Active current limitation x IN (EF011922) 1.25
Fuse type (EF011923) Electronic
Fail safe element (EF011924) 6 A
Switch-off time (EF011925) 0.2 ms
Max. capacitive load (EF011926) 0.02 µF
With remote signalling contact (EF000422) No
Ambient temperature during operating (EF007515) -25 °C
