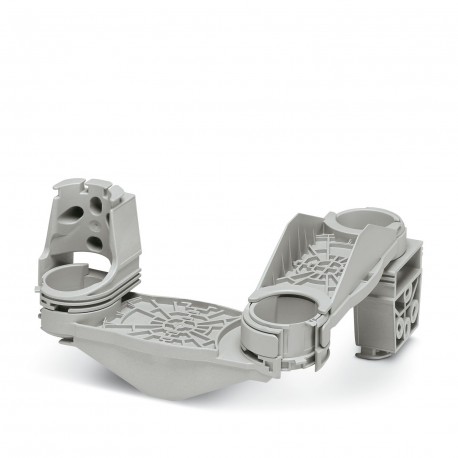

CGS 50 3071400 PHOENIX CONTACT Cable routing system
CGS 50
3071400
PHOENIX CONTACT
1 Pcs.
Cable routing system
Cable guide system, with closed swivel joint, length: 218 mm, width: 68 mm, height: 140.5 mm, diameter: 42 mm, colour: grey
Automation > Component for installation (switchgear cabinet)
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | Cable binders can be used up to a width of 4 mm and from a length of 40 mm |
Product properties
| Product type | Cable feed-through |
| Number of cables | 100 for 1.5 mm² |
Dimensions
| Dimensional drawing |  |
| Width | 68 mm |
| Height | 218 mm |
| Depth | 140.5 mm |
| Cable length | 700 mm ... 460 mm |
| Drill hole distance, horizontal | 25 mm |
| Drill hole distance, vertical | 25 mm |
| Diameter | 42 mm |
| Hole diameter | 5.5 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Components | halogen-free |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 68 mm |
| Height (EF000040) | 218 mm |
| Colour (EF000007) | Grey |
