CF 500/DIE TC HC 4 1324132 PHOENIX CONTACT Die for CF 500 crimping machine, machined contacts CK 1,6-ED..., ..

CF 500/DIE TC HC 4

1324132

PHOENIX CONTACT

1 Pcs.

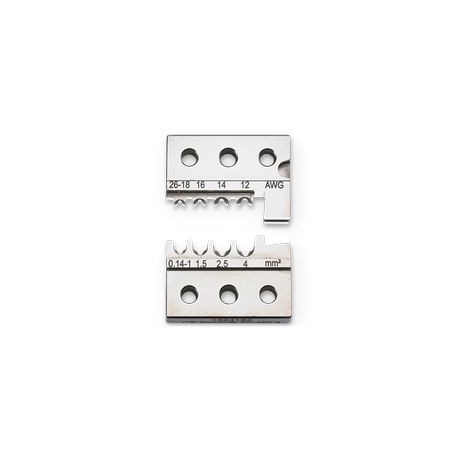

Die for CF 500 crimping machine, machined contacts CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED..., 4 marked die stations Insert

Tools > Stripping and crimping machine
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor 0.14 mm² solid crimp contacts... 4.0 mm² of the series CK1.6 ED..., CK2.5 ED..., CK4.0 ED..., the detailed list of crimp contacts can be found in the list of accessories
Item Properties
Product TypeWomb
PressingSquare setting
Crimp Stitch 1
Min. Section0.14 mm²
Max. Section1 mm²
AWG min.26
AWG max.18
Crimp stitch 2
Max. Section1.5 mm²
AWG max.16
Crimp stitch 3
Max. Section2.5 mm²
AWG max.14
Crimp Stitch 4
Max. Section4 mm²
AWG max.12
Connection data
Connecting Conductors
Metric Section Range0.14 mm² ... 4 mm²
AWG Section Range26 ... 12
Dimensions
Width9 mm
Height36 mm
Longitude32 mm
Material thickness min.6.05 mm
Max. material thickness9 mm
Material Data
ColourNickel plated
Materialsteel
CoatingNickel plated

ETIM for 1324132 Cable cutting and crimping tools (EC002778)
Feature Name Feature Value
Adjustable conductor cross section (EF008548) 6 mm²
Function (EF000030) Other
Strip length (EF006824) 3 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
