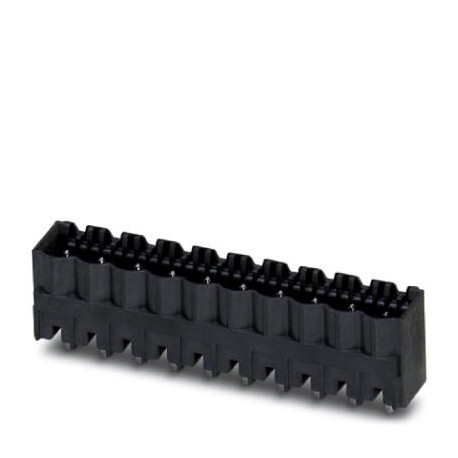

PHOENIX CONTACT CCVA 2,5/ 5-G-5,084PAP26THRR56 CCVA 2,5/ 5-G-5,084PAP26THRR56 1825157 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (II.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCVA 2,5/ 5-G-5,084PAP26THRR56 1825157 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (II..

CCVA 2,5/ 5-G-5,084PAP26THRR56

1825157

PHOENIX CONTACT

140 Pcs.

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 5, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads” Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 5, number of connections: 4, family of articles: CCVA 2.5/.. -G, pitch: 5.08 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 56 mm wide strap, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 5, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”

Key Commercial Data

Orderkey1825157
Packing unit1
GTIN4046356803144
Custom tariff number85366930

Dimensions

Length [ l ]8.57 mm
Width28.2 mm
Pitch5.08 mm
Dimension a20.32 mm
Width [ w ]28.2 mm
Height [ h ]14.6 mm
Height12 mm
Length of the solder pin2.6 mm
Pin dimensions1 x 1 mm
Length8.57 mm

General

Range of articlesCCVA 2,5/..-G
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A (per position)
Flammability rating according to UL 94V0
Colorblack
Number of positions5

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409

ETIM for 1825157 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.6 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
