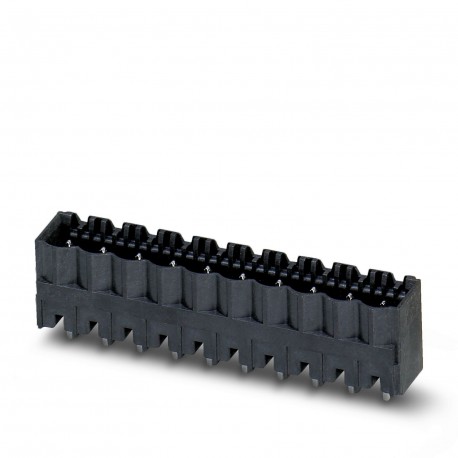

CCVA 2,5/ 4-G-5,08 P14CR2THR 1091245 PHOENIX CONTACT Housing base printed circuit board, number of poles: 4,..
CCVA 2,5/ 4-G-5,08 P14CR2THR
1091245
PHOENIX CONTACT
1 Pcs.
Housing base printed circuit board, number of poles: 4, pitch: 5,08 mm, color: black
Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 4, family of articles: CCVA 2.5/.. -G, pitch: 5.08 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Item Properties
| Product Type | Printed circuit board base housing |
| Product Family | CCVA 2.5/.. -G |
| Product Line | COMBICON Connectors M |
| Number of poles | 4 |
| Step | 5.08 mm |
| Number of rows | 1 |
| Pin Design | Linear Pin Arrangement |
| Number of Solder Pins Per Potential | 1 |
| Data Maintenance Status | |
| Article Review | 02 |
Electrical Properties
| Nominal Current IN | 12 A |
| Nominal voltage UN | 320 V |
| Contact resistance | 1.3 mΩ |
| Sizing voltage (III/3) | 250 V |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning voltage (III/2) | 320 V |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 400 V |
| Dimensioning transient voltage (II/2) | 4 kV |
assembly
| Type of mounting | THR welding/wave welding |
| Pin Design | Linear Pin Arrangement |
| Processing Instructions | |
| Process | Reflow/Wave Soldering |
| Moisture Sensitive Level | MSL 1 |
| Classification Temperature Tc | 260 °C |
| Welding cycles. by reflux | 3 |
Material Data
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Galvanically tinned |
| Metal surface contact area (top layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Contact Area (Middle Layer) | Nickel (1.3 - 3 μm Ni) |
| Metal surface weld area (top layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Welding Area (Middle Layer) | Nickel (1.3 - 3 μm Ni) |
| Material data - housing | |
| Color (Housing) | Black (9005) |
| Insulating material | LCP |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 175 |
| Flammability class according to UL 94 | V0 |
Notes
| Data on Welding Processes | Processing in reflow soldering processes in accordance with IEC 60068-2-58 or DIN EN 61760-1 (current version, respectively) Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C |
| Observation regarding the operation | According to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or under load. |
Dimensions
| Dimension Scheme |  |
| Step | 5.08 mm |
| Width [w] | 23.12 mm |
| Height [h] | 13.4 mm |
| Length [l] | 8.6 mm |
| Overall Height | 12 mm |
| Weld Pin Length [P] | 1.4 mm |
| Temple Dimensions | 1 x 1 mm |
| Printed circuit board design | |
| Hole diameter | 1.6 mm |
Mechanical testing
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Approved Test |
| Used contact holder | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Contact Holder Used Requirement >20 N | Approved Test |
| Forces when plugging in and unplugging | |
| Result | Approved Test |
| Number of cycles | 25 |
| Plug-in force approx. | 8 N |
| Power when unplugging by pole approx. | 6 N |
Electrical Testing
| Thermal Test Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 24 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | IIIa |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 175 |
| Sizing Insulation Voltage (III/3) | 250 V |
| Nominal transient voltage (III/3) | 4 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 3 mm |
| Minimum creepage line value (III/3) | 4 mm |
| Sizing Insulation Voltage (III/2) | 320 V |
| Nominal transient voltage (III/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 3 mm |
| Minimum creepage line value (III/2) | 3.2 mm |
| Sizing Insulation Voltage (II/2) | 400 V |
| Nominal transient voltage (II/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 3 mm |
| Minimum creepage line value (II/2) | 4 mm |
Environmental and life-life conditions
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y, and Z axes |
| Durability Test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Bearable shock voltage at sea level | 4.8 kV |
| Contact Resistance R1 | 1.3 mΩ |
| Contact Resistance R2 | 1.4 mΩ |
| Plug Cycles | 25 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | 0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle |
| Thermal stress | 100 °C/168 h |
| Bearable AC voltage | 2.21 kV |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
Packaging Information
| Type of packaging | Boxed Packaging |
