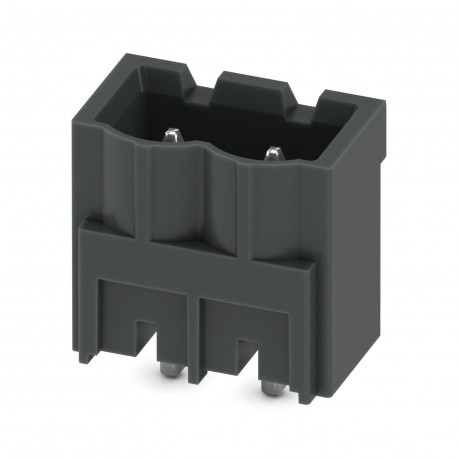

PHOENIX CONTACT CCVA 2,5/ 2-G P26 THR R32 CCVA 2,5/ 2-G P26 THR R32 1107088 PHOENIX CONTACT Housing base printed circuit board, number of poles: 2, pi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCVA 2,5/ 2-G P26 THR R32 1107088 PHOENIX CONTACT Housing base printed circuit board, number of poles: 2, pi..

CCVA 2,5/ 2-G P26 THR R32

1107088

PHOENIX CONTACT

280 Pcs.

Housing base printed circuit board, number of poles: 2, pitch: 5 mm, color: black Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 2, family of articles: CCVA 2.5/.. -G, pitch: 5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of welding pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 32 mm wide strap PCB base socket, nominal cross-section: 2.5 mm2, colour: black, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: plug, number of rows: 1, number of poles: 2, product series: CCVA 2.5/.. -G, pitch: 5 mm, mounting: TTHR / wave soldering, pin layout: Linear pinning, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug system: COMBICON MSTB 2.5, Insertion pin orientation: Standard, locking: none, fastening type: none, packaging type: 32 mm wide tape

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Article features
Product TypeBasic socket for printed circuit boards
Product FamilyCCVA 2.5/.. -G
Product LineCOMBICON Connectors M
Number of poles2
Step5 mm
Number of rows1
Pin LayoutLinear Pinning
Number of Welding Pins per Potential1
Data maintenance status
Article review01
Electrical characteristics
Rated Current IN12 A
Rated voltage UN320 V
Mass Resistivity1.2 mΩ
Sizing voltage (III/3)250 V
Sizing impulse voltage (III/3)4 kV
Sizing voltage (III/2)320 V
Sizing Impulse Voltage (III/2)4 kV
Sizing voltage (II/2)400 V
Sizing Impulse Voltage (II/2)4 kV
Montage
Mounting typeTTHR / wave soldering
Pin LayoutLinear Pinning
Processing Instructions
ProcessReflow/wave soldering
Moisture Sensitive LevelMSL 1
Classification Temperature Tc260 °C
Reflow Soldering Cycles3
Material information
Material information - contacts
noteComplies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu Alloy
Surface FinishGalvanic tin plating
Metal surface contact zone (surface layer)Tin (3 - 5 μm Sn)
Metal surface contact area (middle layer)Nickel (1.3 - 3 μm Ni)
Metal Surface Welding Area (Surface Layer)Tin (3 - 5 μm Sn)
Metal Surface Weld Area (Middle Layer)Nickel (1.3 - 3 μm Ni)
Material information - case
Color (Case)Black (9005)
Insulation materialLCP
Insulation Material GroupIIIa
CTI according to IEC 60112175
Combustibility class according to UL 94V0
Notes
Welding Process DataMachining in reflow processes in accordance with IEC 60068-2-58 or DIN EN 61760-1 (updated version)
Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C
Note for OperationAccording to DIN EN 61984, COMBICON connectors are connectors without switchable power (COC). For use in accordance with the intended use, they must not be switched on or disconnected while they are still live or under load.
dimensions
Dimensioned Drawingdvbtjqggdc.jpg
Step5 mm
Width [w]12.8 mm
Height [h]14.6 mm
Length [l]8.57 mm
Installation Height12 mm
Weld Shank Length [P]2.6 mm
Shank sizes1 x 1 mm
Printed circuit board design
Bore diameter1.6 mm
Mechanical Controls
Visual inspection
Test SpecificationDIN EN 60512-1-1:2003-01
ResultTest passed
Dimensional control
Test SpecificationDIN EN 60512-1-2:2003-01
ResultTest passed
Resistance of lettering
Test SpecificationDIN EN 60068-2-70:1996-07
ResultTest passed
Polarization and encoding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultTest passed
Contact holder in use
Test SpecificationDIN EN 60512-15-1:2009-03
Areas of application for contact holders
Application >20 N		Test passed
Insertion/tensile force
ResultTest passed
Number of cycles25
Insertion force per pole approx.8 N
Tensile force per pole approx.6 N
Electrical Controls
Thermal Test Control Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested24
Insulation Resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Between Contiguous Poles> 5 MΩ
Creepage and Creepage Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation Material GroupIIIa
Resistance to surface currents (DIN EN 60112 (VDE 0303-11))CTI 175
Rated insulation voltage (III/3)250 V
Rated impulse voltage (III/3)4 kV
Minimum clearance value - inhomogeneous range (III/3)3 mm
Minimum creepage value (III/3)4 mm
Rated Isolation Voltage (III/2)320 V
Rated impulse voltage (III/2)4 kV
Minimum creepage value - inhomogeneous range (III/2)3 mm
Minimum creepage value (III/2)3.2 mm
Rated Isolation Voltage (II/2)400 V
Rated Impulse Voltage (II/2)4 kV
Minimum creepage value - inhomogeneous range (II/2)3 mm
Minimum creepage value (II/2)4 mm
Environmental and electrical life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axle2.5 h
Test DirectionsX, Y, and Z axis
Electrical life control
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Vertical impulse tension above sea level4.8 kV
Mass Resistivity R11.2 mΩ
Mass Resistivity R21.2 mΩ
Manoeuvring cycles25
Insulation Resistance Between Contiguous Poles> 5 MΩ
Climate control
Test SpecificationDIN EN ISO 6988:1997-03
Stress due to corrosion0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle
Stress due to the effect of heat100 °C/168 h
Fixed AC voltage2.21 kV
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (depending on derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (transport and storage)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Packaging Information
Dimensioned Drawingckrmjeflhr.jpg
PackagingTape width 32 mm
Belt width [W]32 mm
Coil external size [W2]38.4 mm
Coil diameter [A]330 mm
Type of packagingTransparent bag
ESD Level(D) Anti-static
Test SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07

ETIM for 1107088 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.6 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
