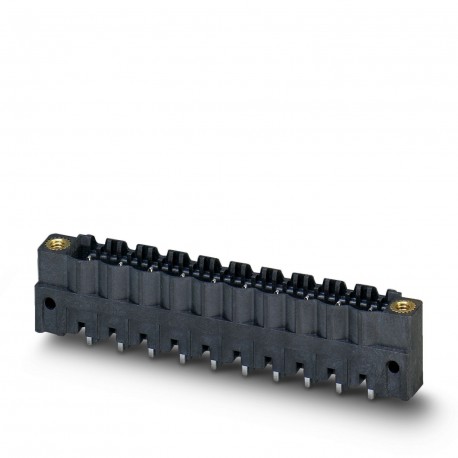

PHOENIX CONTACT CCV 2,5/ 8-GF-5,08P26AUTHRR88 CCV 2,5/ 8-GF-5,08P26AUTHRR88 1712296 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCV 2,5/ 8-GF-5,08P26AUTHRR88 1712296 PHOENIX CONTACT Printed-circuit board connector

CCV 2,5/ 8-GF-5,08P26AUTHRR88

1712296

PHOENIX CONTACT

140 Pcs.

Printed-circuit board connector Base housing printed circuit board, nominal section: 2.5 mm², color: black, rated current: 12 A, sizing voltage (III/2): 320 V, surface contacts: Gold, contact type: Male, Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, number of connections: 8, article family: CCV 2.5/.. -GF, pitch: 5.08 mm, mounting: THR welding, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw lock, packing type: 88 mm wide strap PCB headers, nominal cross section: 2.5 mm2, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Au, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: CCV 2,5/..-GF, pitch: 5.08 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: 88 mm wide tape

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB headers
Product familyCCV 2,5/..-GF
Product lineCOMBICON Connectors M
TypeComponent suitable for through hole reflow
Number of positions8
Pitch5.08 mm
Number of connections8
Number of rows1
Number of potentials8
Mounting flangeThreaded flange
Pin layoutLinear pinning
Solder pins per potential1
Data management status
Article revision06
Electrical properties
Nominal current IN12 A
Nominal voltage UN320 V
Rated voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)400 V
Rated surge voltage (II/2)4 kV
Mounting
Mounting typeTHR soldering / wave soldering
Pin layoutLinear pinning
Flange
Tightening torque0.3 Nm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicspartially gold-plated
Metal surface contact area (top layer)Gold (0.8 - 1.4 µm Au)
Metal surface contact area (middle layer)Nickel (2 - 4 µm Ni)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer)Nickel (2 - 4 µm Ni)
Material data - housing
Color (Housing)black (9005)
Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0
Notes
Details for soldering processesProcessing using reflow processes in compliance with IEC 60068-2-58 or DIN EN 61760-1 (latest version)
Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C
Dimensions
Dimensional drawingdvbtjqggdc.jpg
Pitch5.08 mm
Width [w]50.75 mm
Height [h]14.6 mm
Length [l]8.57 mm
Installed height12 mm
Solder pin length [P]2.6 mm
Pin dimensions1 x 1 mm
PCB design
Hole diameter1.6 mm
Electrical tests
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupIIIa
Comparative tracking index (IEC 60112)CTI 175
Rated insulation voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)4 mm
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3.2 mm
Rated insulation voltage (II/2)400 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)4 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Dimensional drawingckrmjeflhr.jpg
Type of packaging88 mm wide tape
[W] tape width88 mm
[W2] coil overall dimension94.4 mm
[A] coil diameter330 mm
Outer packaging typeTransparent-Bag
ESD level(D) electrostatically conductive
SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07

ETIM for 1712296 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 8
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.6 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
