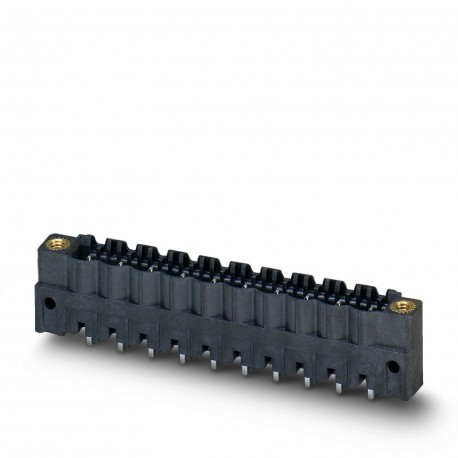

PHOENIX CONTACT CCV 2,5/ 8-GF-5,08 GNP26THRR88 CCV 2,5/ 8-GF-5,08 GNP26THRR88 1845441 PHOENIX CONTACT Housing base printed circuit board, nominal current: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCV 2,5/ 8-GF-5,08 GNP26THRR88 1845441 PHOENIX CONTACT Housing base printed circuit board, nominal current: ..

CCV 2,5/ 8-GF-5,08 GNP26THRR88

1845441

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Housing base printed circuit board, nominal current: 12 A, voltage and sizing (III/2): 320 V, number of poles: 8, pitch: 5,08 mm, color: green, surface of contact: Tin, assembly: Soldering THR

Printed circuit board base case, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: CCV 2.5/.. -GF, pitch: 5.08 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: 88 mm wide strap
