PHOENIX CONTACT CCV 2,5/ 6-GF-5,08 GYP26THRR56 CCV 2,5/ 6-GF-5,08 GYP26THRR56 1845438 PHOENIX CONTACT Housing base printed circuit board, nominal current: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCV 2,5/ 6-GF-5,08 GYP26THRR56 1845438 PHOENIX CONTACT Housing base printed circuit board, nominal current: ..

CCV 2,5/ 6-GF-5,08 GYP26THRR56

1845438

PHOENIX CONTACT

140 Pcs.

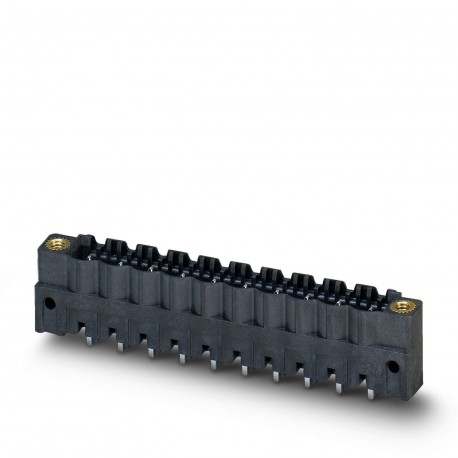

Housing base printed circuit board, nominal current: 12 A, voltage and sizing (III/2): 320 V, number of poles: 6, pitch: 5,08 mm, color: gray, surface contacts: Tin, assembly: Soldering THR Printed circuit board base housing, nominal section: 2.5 mm², color: gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: CCV 2.5/.. -GF, pitch: 5.08 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: 56 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted circuit board base housing
Product FamilyCCV 2.5/.. -GF
Product LineCOMBICON Connectors M
ConstructionSuitable component for Through Hole Reflow
Number of poles6
Step5.08 mm
Number of connections6
Number of rows1
Number of potentials6
Clamping flangeOverhead clamping (thread)
Pin DesignLinear Pin Arrangement
Number of Solder Pins Per Potential1
Data Maintenance Status
Article Review01
Electrical Properties
Nominal Current IN12 A
Nominal voltage UN320 V
Contact resistance1 mΩ
Sizing voltage (III/3)250 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)320 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)400 V
Dimensioning transient voltage (II/2)4 kV
assembly
Type of mountingTHR welding/wave welding
Pin DesignLinear Pin Arrangement
bridle
Tightening torque0.3 Nm
Processing Instructions
ProcessReflow/Wave Soldering
Moisture Sensitive LevelMSL 1
Classification Temperature Tc260 °C
Welding cycles. by reflux3
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsGalvanically tinned
Metal surface contact area (top layer)Tin (3 - 5 μm Sn)
Metal Surface Contact Area (Middle Layer)Nickel (1.3 - 3 μm Ni)
Metal surface weld area (top layer)Tin (3 - 5 μm Sn)
Metal Surface Welding Area (Middle Layer)Nickel (1.3 - 3 μm Ni)
Material data - housing
Color (Housing)Grey (7042)
Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability class according to UL 94V0
Notes
Data on Welding ProcessesProcessing in reflow soldering processes in accordance with IEC 60068-2-58 or DIN EN 61760-1 (current version, respectively)
Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C
Observation regarding the operationAccording to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or under load.
Dimensions
Dimension Schemedvbtjqggdc.jpg
Step5.08 mm
Width [w]40.59 mm
Height [h]14.6 mm
Length [l]8.57 mm
Overall Height12 mm
Weld Pin Length [P]2.6 mm
Temple Dimensions1 x 1 mm
Printed circuit board design
Hole diameter1.6 mm
Mechanical testing
Eye Exam
Test SpecificationDIN EN 60512-1-1:2003-01
ResultApproved Test
Dimensional Examination
Test SpecificationDIN EN 60512-1-2:2003-01
ResultApproved Test
Resistance of the signs
Test SpecificationDIN EN 60068-2-70:1996-07
ResultApproved Test
Polarization & Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultApproved Test
Used contact holder
Test SpecificationDIN EN 60512-15-1:2009-03
Contact Holder Used
Requirement >20 N		Approved Test
Forces when plugging in and unplugging
ResultApproved Test
Number of cycles25
Plug-in force approx.8 N
Power when unplugging by pole approx.6 N
Electrical Testing
Thermal Test Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested12
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupIIIa
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 175
Sizing Insulation Voltage (III/3)250 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)4 mm
Sizing Insulation Voltage (III/2)320 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3.2 mm
Sizing Insulation Voltage (II/2)400 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)4 mm
Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y, and Z axes
Durability Test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Bearable shock voltage at sea level4.8 kV
Contact Resistance R11 mΩ
Contact Resistance R21 mΩ
Plug Cycles25
Insulation Resistance Adjacent Poles> 5 MΩ
Climate Essay
Test SpecificationDIN EN ISO 6988:1997-03
Corrosion fatigue0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle
Thermal stress105 °C/168 h
Bearable AC voltage2.21 kV
Crash
Test SpecificationDIN EN 60068-2-27 (VDE 0468-2-27):2010-02
Shock TypeSemi-sinusoidal
Acceleration30g
Duration of the crash18 ms
Test DirectionsX, Y, and Z axes (pos. and neg.)
Environmental conditions
Ambient Temperature (Service)-40 °C ... 105 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Packaging Information
Dimension Schemeckrmjeflhr.jpg
Type of packaging56 mm wide strap
Belt Width [W]56 mm
External Coil Measurements [W2]62.4 mm
Coil Diameter [A]330 mm
Outer packing typeDry bag
ESD Level(D) Electrostatically conductive
Test SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07

ETIM for 1845438 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.6 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
