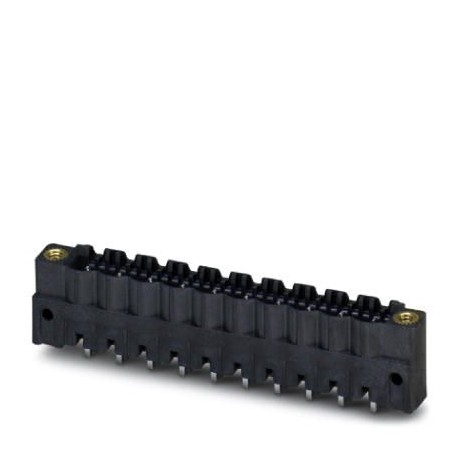

PHOENIX CONTACT CCV 2,5/ 5-GF-5,08 P26 AU THR CCV 2,5/ 5-GF-5,08 P26 AU THR 1717068 PHOENIX CONTACT Разъем печатной платы View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCV 2,5/ 5-GF-5,08 P26 AU THR 1717068 PHOENIX CONTACT Разъем печатной платы

CCV 2,5/ 5-GF-5,08 P26 AU THR

1717068

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Разъем печатной платы

Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: CCV 2.5/.. -GF, pitch: 5.08 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Aerial clamping (thread), packaging type: boxed
