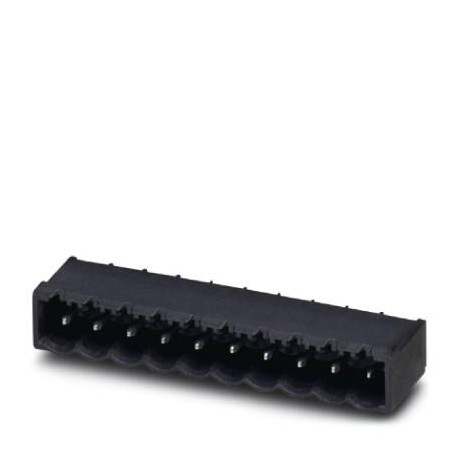

PHOENIX CONTACT CCA 2,5/ 4-G AU P26 THR CCA 2,5/ 4-G AU P26 THR 1027706 PHOENIX CONTACT Feed-through header CCA 2,5/ 4-G AU P26 THR 1027706 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCA 2,5/ 4-G AU P26 THR 1027706 PHOENIX CONTACT Feed-through header CCA 2,5/ 4-G AU P26 THR 1027706

CCA 2,5/ 4-G AU P26 THR

1027706

PHOENIX CONTACT

50 Pcs.

Feed-through header - CCA 2,5/ 4-G AU P26 THR - 1027706 Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: CCA 2.5/.. -G, pitch: 5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 4, pitch: 5 mm, color: black, contact surface: Tin, mounting: THR soldering

Key Commercial Data

Orderkey1027706
Packing unit1
GTIN4055626522845
Custom tariff number85366930

Item properties

Brief article descriptionFeed-through header
Plug-in systemCLASSIC COMBICON
Type of contactMale connector
Range of articlesCCA 2,5/..-G
Pitch5 mm
Number of positions4
Mounting typeTHR soldering
Number of levels1
Number of connections4
Number of potentials4

Electrical parameters

Rated current12 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)Nickel (1.3 - 3 µm Ni),
Metal surface soldering area (top layer)Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)Nickel (1.3 - 3 µm Ni)

Material data - housing

Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112225
Flammability rating according to UL 94V0

Dimensions for the product

Length [ l ]12 mm
Width [ w ]22.8 mm
Height [ h ]11.17 mm
Pitch5 mm
Height (without solder pin)8.57 mm
Solder pin [P]2.6 mm
Pin dimensions1 x 1 mm
Dimension a15 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Termination and connection method

Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / solid / > 50 N
2.5 mm² / flexible / > 50 N

Mechanical tests according to standard

Visual examinationTest passed IEC 60512-1-1:2002-02
Dimensional testTest passed IEC 60512-1-2:2002-02
Resistance of markingTest passed IEC 60068-2-70:1995-12
ResultTest passed
SpecificationIEC 60512-13-2:2006-02
No. of cycles25
Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N
Polarization and codingTest passed IEC 60512-13-5:2006-02
ResultTest passed
SpecificationIEC 60512-15-1:2008-05
Test force per pos.20 N

Air clearances and creepage distances

Insulating material groupIIIa
Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)320 V
Rated insulation voltage (II/2)400 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Mechanical tests (A)

Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R11.1 mΩ
Insertion/withdrawal cycles25
Contact resistance R21.2 mΩ
Impulse withstand voltage at sea level4.8 kV
Power-frequency withstand voltage2.21 kV
Insulation resistance, neighboring positions> 1 TΩ

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level4.8 kV
Power-frequency withstand voltage2.21 kV

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
