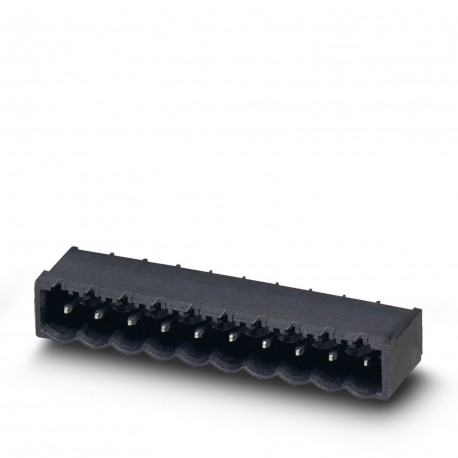

PHOENIX CONTACT CCA 2,5/ 2-G-5,08 P26THR MAG CCA 2,5/ 2-G-5,08 P26THR MAG 1757701 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CCA 2,5/ 2-G-5,08 P26THR MAG 1757701 PHOENIX CONTACT Printed-circuit board connector

CCA 2,5/ 2-G-5,08 P26THR MAG

1757701

PHOENIX CONTACT

41 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Male, Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, number of connections: 2, family of articles: CCA 2.5/.. -G, pitch: 5.08 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, Stecksystem: CLASSIC COMBICON, Lock: without, packaging type: Bar loader Printed circuit board base housing, nominal section: 2.5 mm2, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: CCA 2.5/.. -G, pitch: 5.08 mm, connection type: Plug-in connection, mounting: THR welding/wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of potential solder pins: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: Bar loader

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1757701
Packing unit41 pc
Minimum order quantity41 pc
NoteMade to Order (non-returnable)
GTIN4046356342315
Weight per Piece (excluding packing)1.500 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]12 mm
Pitch5.08 mm
Dimension a5.08 mm
Height [ h ]8.6 mm
Height9 mm
Length of the solder pin2.6 mm
Pin dimensions1 x 1 mm
Length12 mm

General

Range of articlesCCA 2,5/..-G
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A (per position)
Flammability rating according to UL 94V0
Colorblack
Number of positions2

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCDOTE 15571-58-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
