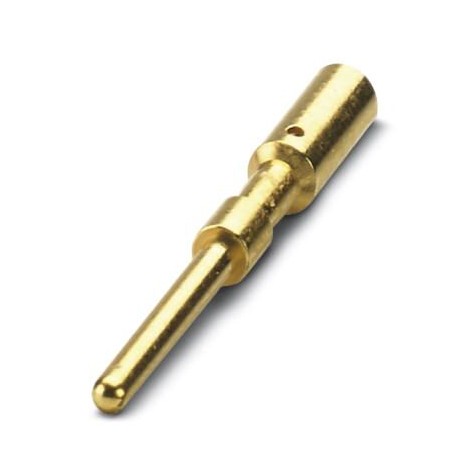

CC1,0-TS-1,00M AU 1423645 PHOENIX CONTACT Crimp contact,  contact diameter: 1 mm,  turned,  Pin,  contact ma..

CC1,0-TS-1,00M AU

1423645

PHOENIX CONTACT

100 Pcs.

Crimp contact,  contact diameter: 1 mm,  turned,  Pin,  contact material: CuZn,  contact surface: Ni/Au,  connection cross section: 0.34 mm² ... 1 mm²  AWG 22 ... 18 Crimp contact, contact diameter: 1 mm, machined, Male, contact material: CuZn, contact surface: Ni/Au, connection cross-section: 0.34 mm² ... 1 mm², AWG 22 ... 18

Connectors > Contact for industrial connectors
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1423645
Packing unit1 pc
Minimum order quantity100 pc
Catalog pagePage 27 (C-2-2019)
GTIN4055626363318
Weight per Piece (excluding packing)0.200 g
Custom tariff number85366990
Country of originDE (Germany)

Drawings

Dimensional drawing

Dimensional drawing
Crimp contact, diameter :1.0 mm

Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Back to top

Mechanical characteristics

Conductor cross section0.34 mm² ... 1 mm² (flexible)
Connection cross section AWG22 ... 18 (flexible)
Stripping length of the individual wire4 mm +0,5 mm
Contact diameter1 mm
Insertion/withdrawal cycles≥ 100
Back to top

General

TypeIndividual male contact
Connection methodCrimp connection
Contact typeturned
Back to top

Material data

Contact materialCuZn
Contact surface materialNi/Au
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 5.127261200
eCl@ss 6.027261200
eCl@ss 7.027440204
eCl@ss 8.027440204
eCl@ss 9.027440204
Back to top

ETIM

ETIM 5.0EC000796
ETIM 6.0EC000796
ETIM 7.0EC000796
Back to top

ETIM for 1423645 Connectors (EC000796)
Feature Name Feature Value
Contact type (EF001587) Pin
Ambient temperature (EF002386) 85 °C
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.34 mm²
Connectable conductor cross section multi-wired (EF007343) 0.34 mm²
Type of electric connection (EF003961) Crimp connection
Strip length (EF006824) 4 mm
Diameter plug-in contact (EF007320) 1 mm
Material contact (EF007544) Other
Material of contact surface (EF004020) Nickel/gold
Min. number of insertion cycles (EF012212) 100
