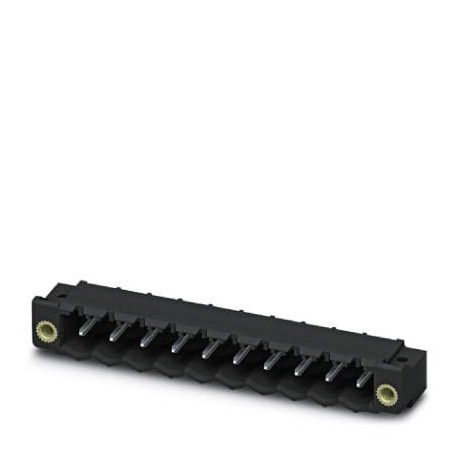

CC 2,5/ 5-GF-LR P20THRR56 1836942 PHOENIX CONTACT Printed-circuit board connector
CC 2,5/ 5-GF-LR P20THRR56
1836942
PHOENIX CONTACT
330 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: DC 2.5/.. -GF-LR, pitch: 5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of welding pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: 56 mm wide strap
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1836942 |
|---|---|
| Packing unit | 330 pc |
| Minimum order quantity | 330 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626021331 |
| Weight per Piece (excluding packing) | 2.220 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 35 mm |
| Pitch | 5 mm |
| Dimension a | 20 mm |
| Width [ w ] | 35 mm |
| Height [ h ] | 10.57 mm |
| Height | 8.57 mm |
| Length of the solder pin | 2 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 12 mm |
General
| Range of articles | CC 2,5/..-GF-LR |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Insulating material | LCP |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 5 |
Packaging information
| Dimensional drawing | |
|---|---|
| Type of packaging | 56 mm wide tape |
| Pieces per package | 330 |
| Denomination packing units | Pcs. |
| [W] tape width | 56 mm |
| [A] coil diameter | 330 mm |
| [W2] coil overall dimension | 62.4 mm |
| Outer packaging type | Transparent-Bag |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
