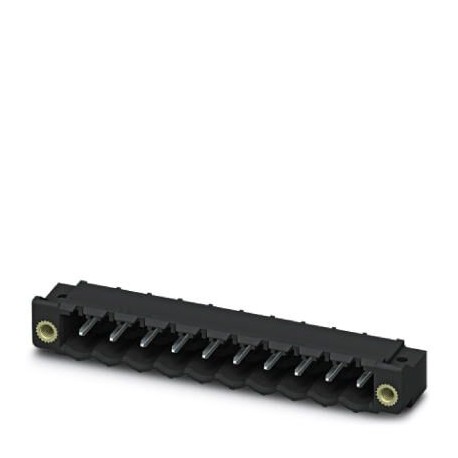

PHOENIX CONTACT CC 2,5/ 2-GF-5,08-LR P26THRR32 CC 2,5/ 2-GF-5,08-LR P26THRR32 1824967 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (II.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CC 2,5/ 2-GF-5,08-LR P26THRR32 1824967 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (II..

CC 2,5/ 2-GF-5,08-LR P26THRR32

1824967

PHOENIX CONTACT

330 Pcs.

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 2, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: DC 2.5/.. -GF-LR, pitch: 5.08 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of welding pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: 32 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 2, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering

Key Commercial Data

Orderkey1824967
Packing unit1
GTIN4046356807944
Custom tariff number85366930

Dimensions

Length [ l ]12 mm
Width35.56 mm
Pitch5.08 mm
Dimension a20.32 mm
Width [ w ]35.56 mm
Height [ h ]11.2 mm
Height8.6 mm
Length of the solder pin2.6 mm
Pin dimensions1 x 1 mm
Length12 mm

General

Range of articlesCC 2,5/..-GF-LR
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions2

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
