View larger
Images are for illustrative purposes only. Please refer to data sheet for details

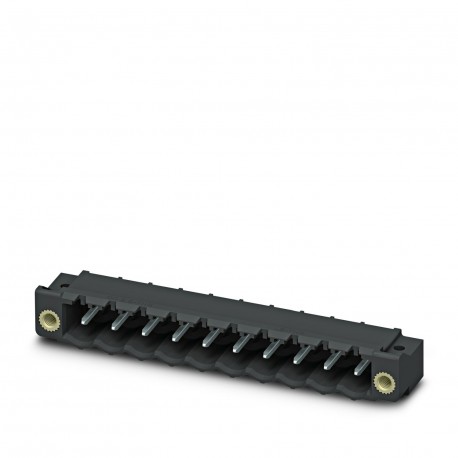

CC 2,5/10-GF-LR P20 THR 1836764 PHOENIX CONTACT Printed-circuit board connector
CC 2,5/10-GF-LR P20 THR
1836764
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: DC 2.5/.. -GF-LR, pitch: 5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed packaging
PCB base, nominal cross-section: 2.5 mm2, colour: black, nominal current: 12 A, reference voltage (III/2): 320 V, contact area: Sn, contact type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, range of articles: DC 2.5/.. -GF-LR, pitch: 5 mm, mounting: THR welding / Wave welding, spindle plane: Linear pinout, spindle length [P]: 2 mm, number of pins per potential: 1, Plug-in system: COMBICON MSTB 2.5, Orientation of the plug-in pattern: Standard, Locking: Locking and unlocking, Fastening type: Threaded flange Lock & Release, packaging type: packed in a carton
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1836764 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626021058 |
| Weight per Piece (excluding packing) | 4.980 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 60 mm |
| Pitch | 5 mm |
| Dimension a | 45 mm |
| Width [ w ] | 60 mm |
| Height [ h ] | 10.57 mm |
| Height | 8.57 mm |
| Length of the solder pin | 2 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 12 mm |
General
| Range of articles | CC 2,5/..-GF-LR |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Insulating material | LCP |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 10 |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 10 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.6 mm |
| Length pin (EF006825) | 2 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Engage (snap) |
| Type of banding (EF007011) | Carton (for SMD) |
