View larger
Images are for illustrative purposes only. Please refer to data sheet for details

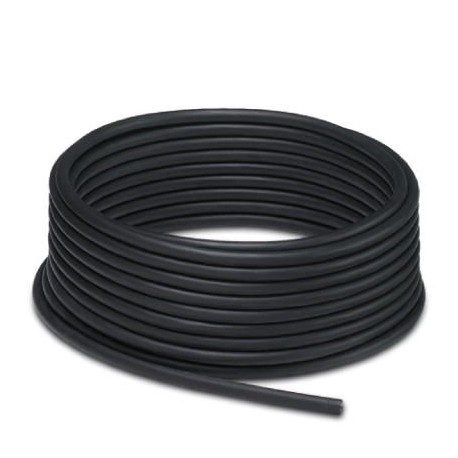

VS-OE-OE-94D-100,0 1416334 PHOENIX CONTACT Network cable
VS-OE-OE-94D-100,0
1416334
PHOENIX CONTACT
1 Pcs.
Network cable
Network cable, CAT5 Ethernet (1 GBit/s), 8-pole, shielded, free cable end, to free cable end, cable length: 100 m
Cables > Data and communication cable
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1416334 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 397 (C-2-2017) |
| GTIN | 4046356474559 |
| Weight per Piece (excluding packing) | 4,790.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Cable
| Cable type | Ethernet |
|---|---|
| Cable type (abbreviation) | 94D |
| UL AWM style | 2464 (80°C/300 V) |
| Signal type/category | Ethernet CAT5 (IEC 11801), 1 Gbps |
| Cable structure | 4x2xAWG26/7; SF/UTP |
| Conductor cross section | 4x 2x 0.14 mm² |
| AWG signal line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 0.98 mm ±0.05 mm |
| Wire colors | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 4 pairs, twisted |
| Shielding | Aluminum-lined polyester foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | black RAL 9005 |
| Outer sheath thickness | 0.8 mm |
| External cable diameter D | 6.4 mm ±0.2 mm |
| Smallest bending radius, fixed installation | 30 mm |
| Smallest bending radius, movable installation | 60 mm |
| Tensile strength GRP | 80 N |
| Outer sheath, material | PVC (reinforced) UV-resistant |
| Material conductor insulation | PP |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 5 GΩ*km |
| Conductor resistance | < 140 Ω/km |
| Cable capacity | < 56 nF/km |
| Wave impedance | 100 Ω ±15 Ω (at 4 ... 100 MHz) |
| Signal speed | 0.6 c |
| Nominal voltage, cable | 72 V DC |
| 300 V AC | |
| Test voltage Core/Core | 2500 V DC (2 s) |
| Test voltage Core/Shield | 2500 V DC (2 s) |
| Flame resistance | According to VW-1 |
| Resistance to oil | according to IEC 60811-2-1 |
| Other resistance | UV resistant According to UL 1581, Section 1200 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (installation) | 0 °C ... 50 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060307eCl@ss 4.127060307eCl@ss 5.027060307eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027061801eCl@ss 8.027061801eCl@ss 9.027061801
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Diameter conductor (EF001621) | 0.98 mm |
| Nominal cross section conductor (EF000060) | 0.14 mm² |
| Conductor category (EF001632) | Class 2 = stranded |
| Number of cores (EF001792) | 8 |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Polypropylene (PP) |
| Core identification (EF000067) | Other |
| Screen over stranding element (EF001623) | Foil + braiding |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Material outer sheath (EF001625) | Other |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Other |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Outer diameter approx. (EF003921) | 6.4 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 60 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 30 mm |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Category (EF001619) | Other |
