View larger
Images are for illustrative purposes only. Please refer to data sheet for details

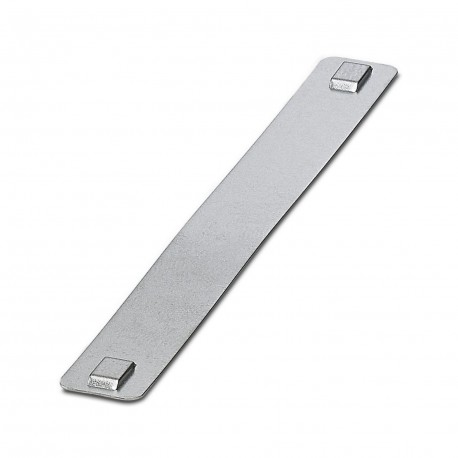

SD-WMTB (70X10) VA 0826585 PHOENIX CONTACT Carrier for conductor marking collar
SD-WMTB (70X10) VA
0826585
PHOENIX CONTACT
50 Pcs.
Carrier for conductor marking collar
Conductor identification sleeve holder, silver, unlabeled, mounting class: Mounting with cable ties, cable diameter: > 16 mm, usable surface: 70 x 10 mm
Carrier for conductor marking collar, silver, unlabeled, mounting type: Assembly with cable ties, cable diameter: > 16 mm, text field height: 10 mm, text field width: 70 mm
Cables > Cable coding system
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Marker carrier cable |
| Type | Marking strip/label |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 10 mm |
| Text field width | 70.00 mm |
| Text field height | 10.00 mm |
| Length | 70 mm |
| External dimensions | |
| Outside diameter | 10 mm ... 305 mm |
Material specifications
| Color | silver |
| Material | Stainless steel |
Cable/line
| External cable diameter | > 16.00 mm |
Environmental and real-life conditions
| Scratch test for the determining scratch resistance | |
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
| Tesafilm test | |
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Wipe resistance of inscriptions | |
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Ambient conditions | |
| Ambient temperature (operation) | -80 °C ... 400 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 24 months |
Standards and regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting type | Assembly with cable ties |
