View larger
Images are for illustrative purposes only. Please refer to data sheet for details

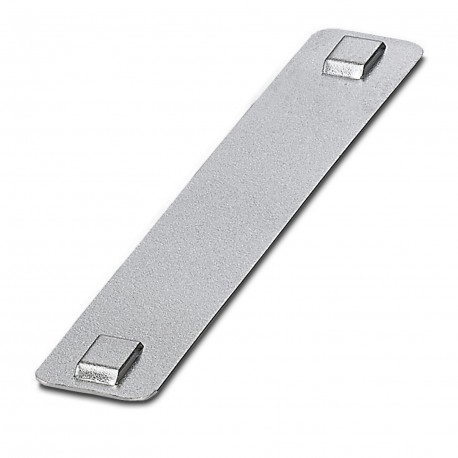

SD-WMTB (47X10) VA 0826572 PHOENIX CONTACT Carrier for conductor marking collar
SD-WMTB (47X10) VA
0826572
PHOENIX CONTACT
50 Pcs.
Carrier for conductor marking collar
Conductor identification sleeve holder, silver, unlabeled, mounting class: Mounting with cable ties, cable diameter: > 16 mm, usable surface: 47 x 10 mm
Conductor identification sleeve holder, silver, unlabelled, mounting class: Mounting with cable tie, cable diameter: > 16 mm, text field height: 10 mm, text field width: 47 mm
Cables > Cable coding system
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0826572 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 254 (C-3-2017) |
| GTIN | 4046356412940 |
| Weight per Piece (excluding packing) | 1.540 g |
| Custom tariff number | 83100000 |
| Country of origin | SE (Sweden) |
General
| Color | silver |
|---|---|
| Type | Marking strip/label |
| Material | Stainless steel |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type | Assembly with cable binders |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
|---|
