View larger
Images are for illustrative purposes only. Please refer to data sheet for details

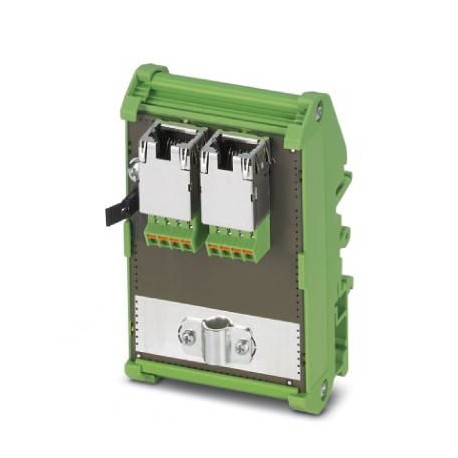

FL-PP-RJ45-SCC/SC045 2904577 PHOENIX CONTACT Patch panels
FL-PP-RJ45-SCC/SC045
2904577
PHOENIX CONTACT
1 Pcs.
Patch panels
Cable Sharing module, two RJ45 female connectors with Ethernet occupancy (top cable output) on 8 spring connection terminals, CAT5e, 10/100 Mbit/s, rail mounting, IP20, selectable symmetrical rail protection contact with jumper
Automation > Patch panel copper (twisted pair)
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2904577 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 347 (C-6-2017) |
| GTIN | 4046356864541 |
| Weight per Piece (excluding packing) | 114.000 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Serial interface
| Interface 1 | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
|---|---|
| No. of ports | 1 |
| Connection method | Spring-cage connection |
| Transmission length | 100 m (including patch cables) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Pin assignment | 1,2,3,6 |
| 4,5,7,8 | |
| Serial transmission speed | 10/100 Mbps |
| Interface 2 | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| No. of ports | 1 |
| Connection method | RJ45 CAT5e |
| Pin assignment | 1,2,3,6 |
| 1,2,3,6 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250591eCl@ss 4.127230207eCl@ss 5.027230207eCl@ss 5.127230200eCl@ss 6.019170100eCl@ss 7.019170112eCl@ss 8.019170112eCl@ss 9.019170112
| Feature Name | Feature Value |
|---|---|
| Number of buses/couplings (EF004395) | 1 |
| Suitable for number of connectors (EF001579) | 1 |
| Type of connector (EF002935) | Other |
| Screened (EF000881) | Yes |
| Category (EF001619) | 5 |
| Number of height units (EF003561) | 2 |
| Height (EF000040) | 90 mm |
| Width (EF000008) | 56 mm |
| Depth (EF000049) | 51 mm |
