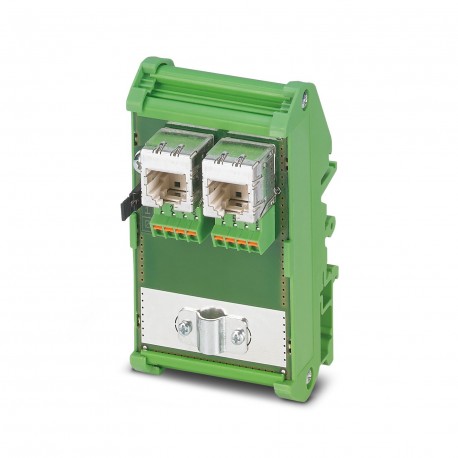

PHOENIX CONTACT FL-PP-RJ45-SCC/SC041 FL-PP-RJ45-SCC/SC041 2903532 PHOENIX CONTACT Patch panels View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL-PP-RJ45-SCC/SC041 2903532 PHOENIX CONTACT Patch panels

FL-PP-RJ45-SCC/SC041

2903532

PHOENIX CONTACT

1 Pcs.

Patch panels Cable Sharing module, two RJ45 female connectors with Ethernet occupancy (front cable output), over 8 spring connection terminals, CAT5e, 10/100 Mbit/s, rail mounting, IP20, selectable symmetrical rail protection contact with jumper Cable sharing module, two RJ45 jacks with Ethernet assignment (cable outlet on the front) to 8 spring-cage connection terminal blocks, CAT5e, 10/100 Mbps, DIN rail mounting, IP20, option of shield contacting on DIN rail via jumpers

Automation > Patch panel copper (twisted pair)
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Note on application
Note on applicationOnly for industrial use
Product properties
Product typePatch panel
Data management status
Article revision05
Insulation characteristics: Air clearances and creepage distances
InsulationBasic insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Air clearances and creepage distances
Rated insulation voltage50 V
Rated surge voltage0.5 kV
Interfaces
Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3
Serial transmission speed10/100 Mbps
Connection methodSpring-cage connection
No. of channels1
Pin assignment1, 2, 3, 6
4, 5, 7, 8
Transmission length100 m (including patch cables)
Single conductor/terminal point, rigid0.2 mm² ... 1.5 mm²
Single-wire/terminal point, flexible0.2 mm² ... 1 mm²
Single-wire/terminal point, rigid AWG max.16
Single-wire/terminal point, rigid AWG min.24
Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3
Connection methodRJ45 CAT5e
No. of channels1
Pin assignment1, 2, 3, 6
1, 2, 3, 6
Dimensions
Width52 mm
Height90 mm
Depth51 mm
Material specifications
Color (Housing)green (RAL 6021)
Cable/line
External cable diameter6 mm ... 10 mm
Cable impedance100 Ω
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≤ 750
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-10 °C ... 50 °C
Approvals
Corrosive gas test
IdentificationISA-S71.04-1985 G3 Harsh Group A
Standards and regulations
Air clearances and creepage distances
Standards/regulationsDIN EN 50178
Mounting
Mounting typeDIN rail mounting
Mounting positionany

ETIM for 2903532 Data networking products (EC001128)
Feature Name Feature Value
Number of buses/couplings (EF004395) 1
Suitable for number of connectors (EF001579) 1
Type of connector (EF002935) Other
Screened (EF000881) Yes
Category (EF001619) 5
Number of height units (EF003561) 2
Height (EF000040) 90 mm
Width (EF000008) 52 mm
Depth (EF000049) 51 mm
