PHOENIX CONTACT FLK 50/4X14/EZ-DR/ 50/KONFEK FLK 50/4X14/EZ-DR/ 50/KONFEK 2296689 PHOENIX CONTACT Cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLK 50/4X14/EZ-DR/ 50/KONFEK 2296689 PHOENIX CONTACT Cable

FLK 50/4X14/EZ-DR/ 50/KONFEK

2296689

PHOENIX CONTACT

1 Pcs.

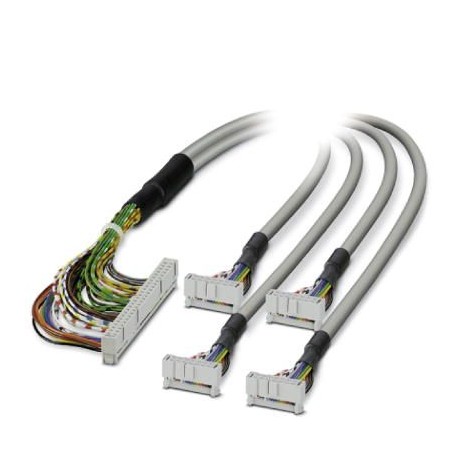

Cable Ready-made round cable; Connection 1: Female IDC/FLK connection (1x 50-poles); connection 2: IDC/FLK connection female (4x 14-poles); Cable length: 0.5 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2296689
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 551 (C-5-2017)
GTIN4017918593711
Weight per Piece (excluding packing)131.400 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN< 50 V AC
60 V DC
Max. current carrying capacity per path1 A
Max. conductor resistance0.16 Ω/m
Length of cable0.5 m
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Conductor construction: Number of litz wires:7
Single wire, materialCu tin-plated
External diameter6.3 mm
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingno

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Connector 1

Connection nameField level
Connection methodIDC/FLK socket strip
Number of connections4
Number of positions14
Pitch2.54 mm

Connector 2

Connection nameController level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions50
Pitch2.54 mm

Supported controller

ControllerSIEMENS S7-400
- suitable I/O card6ES7 421-1BL01-0AA0
6ES7 422-1BL00-0AA0
6ES7 422-7BL00-0AB0
ControllerALLEN-BRADLEY ControlLogix
- suitable I/O card1756-IB32
1756-OB32
ControllerALLEN-BRADLEY PLC 5
- suitable I/O card1771 IBN
1771 OBN
ControllerHONEYWELL Experion PKS C200
- suitable I/O cardTC-IDD 321
TC-ODD 321
ControllerSchneider Electric Modicon TSX QUANTUM
- suitable I/O cardDDI 353
DDI 853
DAI 353
DAI 453
DDO 353
ControllerSIEMENS S7-300 / ET 200 M
- suitable I/O cardCPU 313C-2DP
CPU 314C-2PtP
6ES7 321-1BL00-0AA0
6ES7 322-1BL00-0AA0
6ES7 323-1BL00-0AA0
6ES7 331-7NF00-0AB0
6ES7 331-7PF01-0AB0
6ES7 331-7PF11-0AB0
6ES7 350-2AH01-0AE0
6ES7 357-4AH01-0AE0
CPU 314C-2DP
CPU 313C
CPU 313C-2PtP

Color code

Connector 1 = connector 2 (optional) = wire colorIDC/FLK50 (1) = IDC/FLK14-1 (9) = gray
IDC/FLK50 (2) = IDC/FLK14-1 (11) = white-black
IDC/FLK50 (3) = IDC/FLK14-1 (1) = black
IDC/FLK50 (4) = IDC/FLK14-1 (2) = brown
IDC/FLK50 (5) = IDC/FLK14-1 (3) = red
IDC/FLK50 (6) = IDC/FLK14-1 (4) = orange
IDC/FLK50 (7) = IDC/FLK14-1 (5) = yellow
IDC/FLK50 (8) = IDC/FLK14-1 (6) = green
IDC/FLK50 (9) = IDC/FLK14-1 (7) = blue
IDC/FLK50 (10) = IDC/FLK14-1 (8) = violet
IDC/FLK50 (11) = IDC/FLK14-1 (10) = white
IDC/FLK50 (12) = IDC/FLK14-1 (12) = white-brown
IDC/FLK50 (13) = IDC/FLK14-2 (9) = gray
IDC/FLK50 (14) = IDC/FLK14-2 (11) = white-black
IDC/FLK50 (15) = IDC/FLK14-2 (1) = black
IDC/FLK50 (16) = IDC/FLK14-2 (2) = brown
IDC/FLK50 (17) = IDC/FLK14-2 (3) = red
IDC/FLK50 (18) = IDC/FLK14-2 (4) = orange
IDC/FLK50 (19) = IDC/FLK14-2 (5) = yellow
IDC/FLK50 (20) = IDC/FLK14-2 (6) = green
IDC/FLK50 (21) = IDC/FLK14-2 (7) = blue
IDC/FLK50 (22) = IDC/FLK14-2 (8) = violet
IDC/FLK50 (23) = IDC/FLK14-2 (10) = white
IDC/FLK50 (24) = IDC/FLK14-2 (12) = white-brown
IDC/FLK50 (25) = IDC/FLK14-3 (9) = gray
IDC/FLK50 (26) = IDC/FLK14-3 (11) = white-black
IDC/FLK50 (27) = IDC/FLK14-3 (1) = black
IDC/FLK50 (28) = IDC/FLK14-3 (2) = brown
IDC/FLK50 (29) = IDC/FLK14-3 (3) = red
IDC/FLK50 (30) = IDC/FLK14-3 (4) = orange
IDC/FLK50 (31) = IDC/FLK14-3 (5) = yellow
IDC/FLK50 (32) = IDC/FLK14-3 (6) = green
IDC/FLK50 (33) = IDC/FLK14-3 (7) = blue
IDC/FLK50 (34) = IDC/FLK14-3 (8) = violet
IDC/FLK50 (35) = IDC/FLK14-3 (10) = white
IDC/FLK50 (36) = IDC/FLK14-3 (12) = white-brown
IDC/FLK50 (37) = IDC/FLK14-4 (9) = gray
IDC/FLK50 (38) = IDC/FLK14-4 (11) = white-black
IDC/FLK50 (39) = IDC/FLK14-4 (1) = black
IDC/FLK50 (40) = IDC/FLK14-4 (2) = brown
IDC/FLK50 (41) = IDC/FLK14-4 (3) = red
IDC/FLK50 (42) = IDC/FLK14-4 (4) = orange
IDC/FLK50 (43) = IDC/FLK14-4 (5) = yellow
IDC/FLK50 (44) = IDC/FLK14-4 (6) = green
IDC/FLK50 (45) = IDC/FLK14-4 (7) = blue
IDC/FLK50 (46) = IDC/FLK14-4 (8) = violet
IDC/FLK50 (47) = IDC/FLK14-4 (10) = white
IDC/FLK50 (48) = IDC/FLK14-4 (12) = white-brown

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2296689 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 0.5 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 50
