View larger
Images are for illustrative purposes only. Please refer to data sheet for details

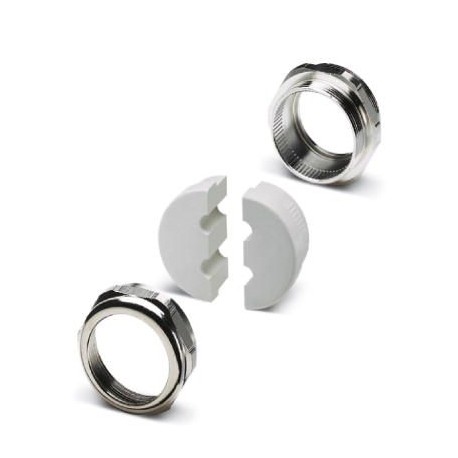

KV-M-M50-GD-(2X9) 1636538 PHOENIX CONTACT Cable gland
KV-M-M50-GD-(2X9)
1636538
PHOENIX CONTACT
5 Pcs.
Cable gland
HEAVYCON M50 metal cable gland, feed-through for data connector, with sectional joint, hole diameter 2 x 9 mm; inner diameter 42 mm
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1636538 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 615 (C-4-2013) |
| GTIN | 4046356028264 |
| Weight per Piece (excluding packing) | 257.640 g |
| Custom tariff number | 74122000 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 39 mm |
|---|---|
| Wrench size, union nut | 50 mm |
| Wrench size, support | 54 mm |
| Hexagon angular dimension | 58 mm |
| Length of the connecting thread | 10 mm |
| External cable diameter | 8.5 mm ... 9 mm (Cable 1) |
| 8.5 mm ... 9 mm (Cable 2) |
General
| No. of conductors | 2 |
|---|---|
| Cable gland material | Nickel-plated brass |
| Material, pressure screw | Nickel-plated brass |
| Seal material | TPE |
| O-ring material | NBR |
| Sealing material | TPE |
| Shielded | no |
| Thread type connection side | M50 |
| Thread type on connection side | M50 |
| Color | silver |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127149100eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 10 mm |
| Wrench width (EF000177) | 50 mm |
| Hexagon angular dimension (EF005268) | 58 mm |
| Suitable for cable diameter (EF005466) | 8.5 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP65 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
