PHOENIX CONTACT K-5E-OE/2,0-C01/M17 F8 K-5E OE/2,0-C01/M17 F8 1619310 PHOENIX CONTACT Cable plug in molded plastic View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K-5E OE/2,0-C01/M17 F8 1619310 PHOENIX CONTACT Cable plug in molded plastic

K-5E-OE/2,0-C01/M17 F8

1619310

PHOENIX CONTACT

2 Pcs.

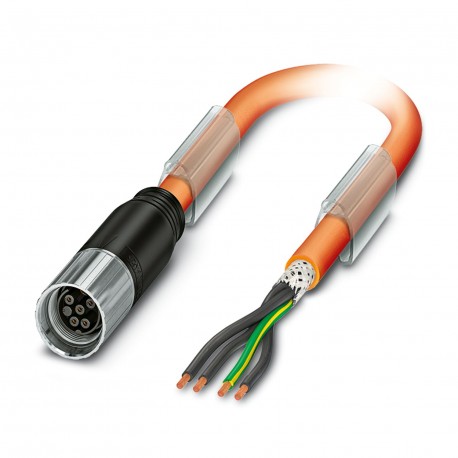

Cable plug in molded plastic Plastic coated cable plug, series: KST, M17-Female, straight coated by plastic extrusion, number of poles: 5+PE, Lock type: Screw lock, cable length: 2 m, shielded: yes, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1243432 Cable plug in molded plastic, series: KST, M17-Socket, Straight, plastic molded, number of positions: 5+PE, type of locking: Screw locking mechanism, cable length: 2 m, shielded: yes, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243432

Cables > Power cable less 1 kV, for moving application
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Notes on operationObserve derating curve.
Safety note
Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50 V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Only use tools recommended by Phoenix Contact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product properties
Product typeSignal and power cable
Data management status
Article revision11
Connector
Connector specifications
TypeStraight, plastic molded
Housing materialZinc die-cast
Thread typeM17
Type of lockingScrew locking mechanism
Degree of protectionIP67, when in locked state
No. of pos.5+PE
Direction of rotationStandard
Contact switching typeSocket
Insertion/withdrawal cycles50
Contact resistance< 0.3 mΩ
Max. current14 A
Voltage630 V
Overvoltage categoryIII
Degree of pollution3
Rated surge voltage6 kV
Ambient temperature (operation)-40 °C ... 105 °C
Cable specifications
Cable typePSLC11Y-J
Shieldedyes
Cable structure4x 1.0 mm² + 2x 0.5 mm²
External cable diameter8.90 mm ±0.3 mm
Outer sheath, materialPUR
Material wire insulationPP
Single wire, colorblack 1, black 2, black 3, black 4, green/yellow Power wires + PE
black, white Signal wires
Nominal voltage, cable1000 V
Test voltage4 kV
Smallest bending radius, movable installation69 mm
Max. bending cycles5000000
Traversing path5 m
Acceleration5 m/s²
Ambient temperature (operation) for fixed installation-40 °C ... 80 °C
Ambient temperature (operation) for flexible installation-25 °C ... 80 °C
UL AWM style80°C/1000 V
Special propertiesFlexible cable conduit capable
Flame resistanceaccording to UL 758/1581 FT1
Halogen-freein accordance with EN 50267-2-1
Resistance to oilEN 60811-2-1
Cable/line
Cable length2 m

ETIM for 1619310 Cable (EC003250)
Feature Name Feature Value
AWG size (EF011789) Other
Screen over stranding element (EF001623) None
With protective conductor (EF007468) No
Suspension element (EF001794) Other
Torsion resistant (EF001687) No
Low smoke according to EN IEC 61034-2 (EF003799) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
