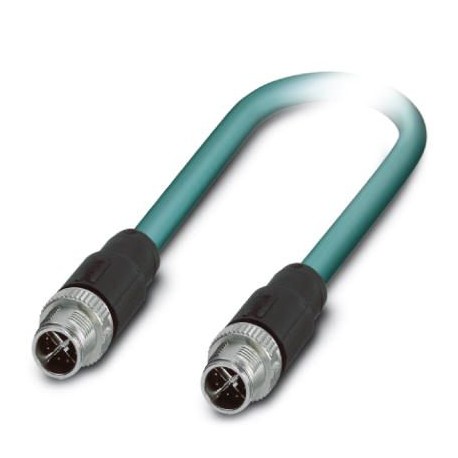

PHOENIX CONTACT NBC-M12MSX/20,0-94F/M12MSX CMC NBC-M12MSX/20,0-94F/M12MSX CMC 1440520 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MSX/20,0-94F/M12MSX CMC 1440520 PHOENIX CONTACT Network cable

NBC-M12MSX/20,0-94F/M12MSX CMC

1440520

PHOENIX CONTACT

1 Pcs.

Network cable Network cable, CAT6A Ethernet (10 GBit/s), 8-pole, M12 straight connector, encoding: X SPEEDCON / IP65, to M12 straight connector, encoding: X SPEEDCON / IP65, cable length: 20 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1440520
Packing unit1 pc
Catalog pagePage 305 (PC-2011)
GTIN4046356504447
Weight per Piece (excluding packing)878.300 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable20 m

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)

General data

Rated current at 40°C0.5 A
Rated voltage48 V AC
60 V DC
Number of positions8
Signal type/categoryEthernet CAT6A, 10 Gbps
Overvoltage categoryII
Degree of pollution3
Alternative short product descriptionEthernet cable

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP65
No. of positions (pin connector pattern)8 (8)
CodingX (Data)
Colorblack
Shieldedyes

Characteristics head 2

Head typePlug straight M12 SPEEDCON / IP65
No. of positions (pin connector pattern)8 (8)
CodingX (Data)
Colorblack
black
Shieldedyes

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typeEthernet 10 Gbit
Cable type (abbreviation)94F
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT6A, 10 Gbps
Cable structure4x2xAWG26/7; S/FTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation1.04 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined foil
Overall twist4 pairs for core
ShieldingTinned copper braided shield
Optical shield covering70 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness0.65 mm
External cable diameter D6.4 mm ±0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Tensile strength GRP≤ 100 N
Cable weight42 kg/km
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacity47 nF/km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)75.3 dB (with 1 MHz)
66.3 dB (at 4 МHz)
61.8 dB (at 8 МHz)
60.3 dB (at 10 MHz)
57.2 dB (at 16 MHz)
55.8 dB (at 20 МHz)
54.3 dB (at 25 MHz)
52.8 dB (at 31.25 МHz)
48.4 dB (at 62.5 МHz)
45.3 dB (at 100 MHz)
40.8 dB (at 200 MHz)
39.3 dB (at 250 MHz)
38.1 dB (at 300 MHz)
36.3 dB (at 400 MHz)
34.8 dB (at 500 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)72.3 dB (with 1 MHz)
63.3 dB (at 4 МHz)
58.8 dB (at 8 МHz)
57.3 dB (at 10 MHz)
54.2 dB (at 16 MHz)
52.8 dB (at 20 МHz)
51.3 dB (at 25 MHz)
49.9 dB (at 31.25 МHz)
45.4 dB (at 62.5 МHz)
42.3 dB (at 100 MHz)
37.8 dB (at 200 MHz)
36.3 dB (at 250 MHz)
35.1 dB (at 300 MHz)
33.3 dB (at 400 MHz)
31.8 dB (at 500 MHz)
Attenuation3.1 dB (with 1 MHz)
5.7 dB (at 4 МHz)
8 dB (at 8 МHz)
8.9 dB (at 10 MHz)
11.2 dB (at 16 MHz)
12.6 dB (at 20 МHz)
14.1 dB (at 25 MHz)
15.8 dB (at 31.25 МHz)
22.5 dB (at 62.5 МHz)
28.7 dB (at 100 MHz)
41.4 dB (at 200 MHz)
46.6 dB (at 250 MHz)
51.4 dB (at 300 MHz)
60.1 dB (at 400 MHz)
67.9 dB (at 500 MHz)
Return loss (RL)20 dB (with 1 MHz)
23 dB (at 4 МHz)
24.5 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
24.2 dB (at 25 MHz)
23.3 dB (at 31.25 МHz)
20.7 dB (at 62.5 МHz)
19 dB (at 100 MHz)
16.4 dB (at 200 MHz)
15.6 dB (at 250 MHz)
15.6 dB (at 300 MHz)
15.6 dB (at 400 MHz)
15.6 dB (at 500 MHz)
Signal runtime5.13 ns/m
Shield attenuation≥ 80 dB (at 30 ... 100 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilin accordance with DIN EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1440520 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M12
Positioning cable feed, field-sided (EF005928) Other
Cable length (EF000536) 20 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated current In (EF008250) 0.5 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
