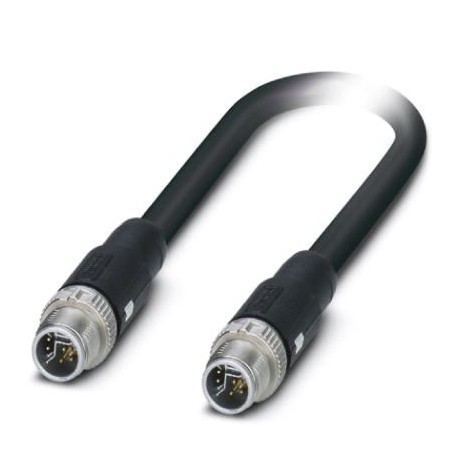

PHOENIX CONTACT VS-M12MS-M12MS-94H-HYB/20,0SCO VS-M12MS-M12MS-94H-HYB/20,0SCO 1402441 PHOENIX CONTACT Hybrid cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-M12MS-M12MS-94H-HYB/20,0SCO 1402441 PHOENIX CONTACT Hybrid cable

VS-M12MS-M12MS-94H-HYB/20,0SCO

1402441

PHOENIX CONTACT

1 Pcs.

Hybrid cable Hybrid Cable, CAT5 Hybrid Ethernet (100 MBit/s), 8-pole, M12 SPEEDCON / IP67 straight connector, Y-encoding, to M12 SPEEDCON / IP67 straight connector, Y-coding, cable length: 20 m, Power with Ethernet (PWE)

Cables > Data cable
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1402441
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 323 (PC-2011)
GTIN4046356615983
Weight per Piece (excluding packing)1,793.400 g
Custom tariff number85444210
Country of originPL (Poland)

Dimensions

Length of cable20 m

Ambient conditions

Degree of protectionIP65
IP67

General data

Rated current at 40°C6 A (Power)
0.5 A (Data)
Rated voltage30 V AC (Power and data)
30 V DC
Number of positions8
Signal type/categoryEthernet hybrid CAT5 (IEC 11801), 100 Mbps
Degree of pollution2

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)8 (4+4)
CodingY (Hybrid)
Colorblack
Material (component)CuZn (Contact)
Ni/Au (Contact surface)
PP (Contact carrier, data)
PA (Contact carrier, power)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Shieldedyes
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Ambient temperature (operation)-25 °C ... 90 °C

Characteristics head 2

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)8 (4+4)
CodingY (Hybrid)
Colorblack
black
Material (component)CuZn (Contact)
Zinc die-cast, nickel-plated (Screw connection)
Ni/Au (Contact surface)
PP (Contact carrier, data)
PA (Contact carrier, power)
TPU, hardly inflammable, self-extinguishing (Grip)
Shieldedyes
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Ambient temperature (operation)-25 °C ... 90 °C

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Cable typeEthernet hybrid
Cable type (abbreviation)94H
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet hybrid CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG26+1x4xAWG20
Conductor cross section4x 0.15 mm² (Data)
4x 0.6 mm² (Power)
AWG signal line26
AWG power supply20
Conductor structure signal line19x 0.10 mm
Conductor structure, voltage supply19x 0.20 mm
Core diameter including insulation1.05 mm (Data)
1.4 mm (Power)
Wire colorsWhite/orange, orange, white/green, green, white, blue, brown, black
Overall twist1 star quad and 4 wires with 2 fillers
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack RAL 9005
External cable diameter D7.6 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path4.5 m
Traversing rate3 m/s
Acceleration3 m/s²
Tensile strength GRP70 N (in accordance with DIN EN 50565-1 for flexible installation)
240 N (in accordance with DIN EN 50565-1 for fixed installation)
Cable weight87 kg/km
Outer sheath, materialPUR
Material conductor insulationPP (Data)
PP (Power)
Conductor materialBare Cu litz wires
Insulation resistance≥ 5 GΩ*km
Loop resistance≤ 280.00 Ω/km (Data)
≤ 34.60 Ω/km (Power)
Working capacitancenom. 50 nF (per kilometer)
Wave impedance100 Ω ±15 Ω (4 MHz ... 100 MHz)
Near end crosstalk attenuation (NEXT)56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Attenuation6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.5 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Shield attenuation≥ 80 dB (30 MHz ... 125 MHz)
Differential impedance100 Ω ±5 % (at 100 MHz)
Nominal voltage, cable≤ 50 V (Peak value, not for high-power applications)
Test voltage Core/Core1500 V (50 Hz, 1 min.)
Test voltage Core/Shield1500 V (50 Hz, 1 min.)
Special propertiesFree of substances which would hinder coating with paint or varnish
Silicone-free
Flame resistancein acc. with UL 1581, section 1061
Halogen-freeaccording to IEC 60754
in accordance with DIN VDE 0472 part 815
Resistance to oilaccording to IEC 60811-2-1
according to VDE 0282 Part 10
Other resistanceLow adhesion
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 70 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
