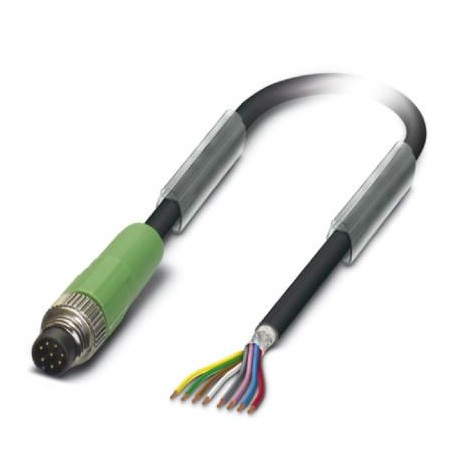

PHOENIX CONTACT SAC-8P-M 8MS/ 5,0-PUR SH SAC-8P-M 8MS/ 5,0-PUR SH 1404141 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-8P-M 8MS/ 5,0-PUR SH 1404141 PHOENIX CONTACT Sensor/actuator cable

SAC-8P-M 8MS/ 5,0-PUR SH

1404141

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 8-pole halogen-free, shielded, M8 straight connector, coding: A, to free cable end, cable length: 5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1404141
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 216 (C-2-2017)
GTIN4046356680608
Weight per Piece (excluding packing)240.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C1.5 A
Rated voltage30 V AC
30 V DC
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Protective circuit/componentunwired
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.2 Nm (M8 connectors)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable abbreviationLi9YV1-C-V1-11Y
UL AWM style20549
Conductor cross section8x 0.14 mm² (Signal line)
AWG signal line26
Conductor structure signal line18x 0.10 mm
Core diameter including insulation1 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm (Signal line)
≥ 0.38 mm (Outer cable sheath)
Wire colorswhite, brown, green, yellow, gray, pink, blue, red
Overall twist8 wires around filler to the core
Length of twist, overall twist58 mm
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack-gray RAL 7021
External cable diameter D5.9 mm ±0.2 mm
Smallest bending radius, fixed installation29.5 mm
Smallest bending radius, movable installation59 mm
Number of bending cycles2000000
Bending radius59 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Outer sheath, materialPUR
Material, fillerPE
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance1 GΩ*km (at 20 °C)
Conductor resistance139 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Test voltage Core/Shield≥ 2000 V AC (for 60 s)
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1404141 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M8
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 1.5 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
