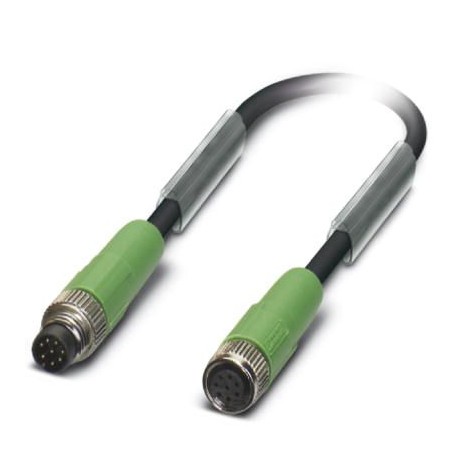

Sensor/actuator cable Sensor/actuator cable, 8-pole halogen-free, M8 straight connector, coding: A, to M8 straight female, cable length: 0.6 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1404198
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 213 (C-2-2017)
GTIN4046356681186
Weight per Piece (excluding packing)30.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable0.6 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C1.5 A
Rated voltage30 V AC
30 V DC
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Protective circuit/componentunwired
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.2 Nm (M8 connectors)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Cable

Cable abbreviationLi9Y11Y
UL AWM style20549
Conductor cross section8x 0.14 mm² (Signal line)
AWG signal line26
Conductor structure signal line18x 0.10 mm
Core diameter including insulation1 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm (Signal line)
≥ 0.38 mm (Outer cable sheath)
Wire colorswhite, brown, green, yellow, gray, pink, blue, red
Overall twist8 wires around filler to the core
Length of twist, overall twist58 mm
External sheath, colorblack-gray RAL 7021
External cable diameter D5.1 mm ±0.15 mm
Smallest bending radius, fixed installation25.5 mm
Smallest bending radius, movable installation51 mm
Number of bending cycles4000000
Bending radius51 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Outer sheath, materialPUR
Material, fillerPE
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance1 GΩ*km (at 20 °C)
Conductor resistance139 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1404198 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M8
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M8
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.6 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 1.5 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65
