PHOENIX CONTACT SAC-8P-M 8MR/ 3,0-PUR SAC-8P-M 8MR/ 3,0-PUR 1404186 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-8P-M 8MR/ 3,0-PUR 1404186 PHOENIX CONTACT Sensor/actuator cable

SAC-8P-M 8MR/ 3,0-PUR

1404186

PHOENIX CONTACT

1 Pcs.

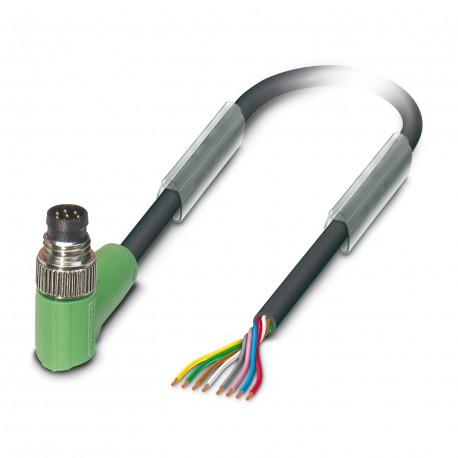

Sensor/actuator cable Sensor/actuator cable, 8-pole halogen-free, M8 angled connector, coding: A, to free cable end, cable length: 3 m Sensor/actuator cable, 8-position, PUR halogen-free, black-gray RAL 7021, Plug angled M8, coding: A, on free cable end, cable length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationStandard
Number of positions8
No. of cable outlets1
Shieldedno
CodingA
Data management status
Article revision04
Insulation characteristics
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V AC
30 V DC
Nominal current IN1.5 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.2 Nm (M8 connectors)
Connector
Connection 1
TypePlug angled M8
Number of positions8
Coding typeA
Connection 2
Typefree cable end
Cable/line
Cable length3 m
PUR halogen-free black [PUR]
Dimensional drawingvrnqwyybbx.jpg
Cable weight31.4 kg/km
UL AWM Style20549
Number of positions8
Shieldedno
Cable typePUR halogen-free black [PUR]
Conductor structure signal line18x 0.10 mm
AWG signal line26
Conductor cross section8x 0.14 mm² (Signal line)
Wire diameter incl. insulation1 mm ±0.02 mm (Signal line)
External cable diameter5.10 mm ±0.15 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material, fillerPE
Material wire insulationPP
Single wire, colorwhite, brown, green, yellow, gray, pink, blue, red
Thickness, insulation≥ 0.21 mm (Signal line)
≥ 0.38 mm (Outer cable sheath)
Overall twist8 wires around filler to the core
Length of twist, overall twist58 mm
Max. conductor resistance139 Ω/km (at 20 °C)
Insulation resistance1 GΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage≥ 3000 V AC (Spark test)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation25.5 mm
Smallest bending radius, movable installation51 mm
Dynamic load capacity (bending)Max. bending cycles: 4000000, Bending radius: 51 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Standards and regulations
M8
Standard designationM8 connector
Standards/specificationsIEC 61076-2-104

ETIM for 1404186 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M8
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Angled
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 1.5 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
