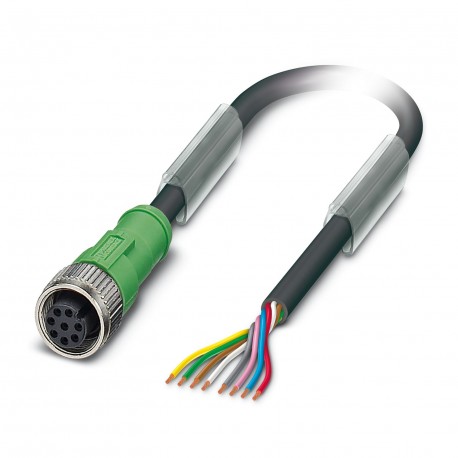

PHOENIX CONTACT SAC-8P-3,0-PUR/M12FS SAC-8P- 3,0-PUR/M12FS 1522600 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-8P- 3,0-PUR/M12FS 1522600 PHOENIX CONTACT Sensor/actuator cable

SAC-8P-3,0-PUR/M12FS

1522600

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 8-pole, halogen-free PUR, greyish black RAL 7021, free cable end, to Straight connection female M12, coding: A, cable length: 3 m Sensor/actuator cable, 8-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M12, coding: A, cable length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationStandard
Number of positions8
No. of cable outlets1
Shieldedno
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V AC
30 V DC
Nominal current IN2 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.4 Nm (M12 connector)
Connector
Connection 1
Typefree cable end
Connection 2
TypeSocket straight M12
Number of positions8
Coding typeA
Cable/line
Cable length3 m
PUR halogen-free black [PUR]
Dimensional drawingmhvfbylqwa.jpg
Cable weight46 kg/km
UL AWM Style20549 / 10493 (80°C/300 V)
Number of positions8
Shieldedno
Cable typePUR halogen-free black [PUR]
Conductor structure signal line32x 0.10 mm
AWG signal line24
Conductor cross section8x 0.25 mm² (Signal line)
Wire diameter incl. insulation1.17 mm ±0.02 mm
External cable diameter5.90 mm ±0.15 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material, fillerPE
Material wire insulationPP
Single wire, colorwhite, brown, green, yellow, gray, pink, blue, red
Thickness, insulation≥ 0.21 mm
Thickness, outer sheathapprox. 0.80 mm
Overall twist8 wires around filler to the core
Max. conductor resistance≤ 78 Ω/km
Insulation resistance≥ 1 GΩ*km
Wave impedance100 Ω +15 % (with 1 MHz)
Cable capacity≤ 70 pF/m
Nominal voltage, cable≤ 300 V
Test voltage≥ 3000 V
Minimum bending radius, fixed installation8 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation48 mm
Smallest bending radius, movable installation59 mm
Dynamic load capacity (bending)Max. bending cycles: 4000000, Bending radius: 59 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
Flame resistancein accordance with UL 758/1581 FT2
According to DIN EN 60332-2-2 (20 s)
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Low adhesion
abrasion-resistant
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
flexible
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (Cable, flexible installation)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1522600 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuZn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65
