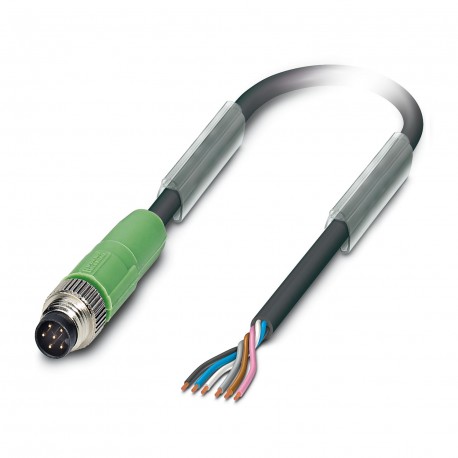

PHOENIX CONTACT SAC-6P-M 8MS/ 3,0-PUR SAC-6P-M 8MS/ 3,0-PUR 1522105 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-6P-M 8MS/ 3,0-PUR 1522105 PHOENIX CONTACT Sensor/actuator cable

SAC-6P-M 8MS/ 3,0-PUR

1522105

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 6-pole, M8 straight connector, coding: A, to free cable end, cable length: 3 m Sensor/actuator cable, 6-pole, halogen-free PUR, greyish black RAL 7021, Straight M8 connector, coding: A, to free cable end, cable length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1522105
Packing unit1 pc
Catalog pagePage 211 (C-2-2017)
GTIN4046356020916
Weight per Piece (excluding packing)106.500 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable3 m
Stripping length of the free conductor end50 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C1.5 A
Rated voltage30 V AC
30 V DC
Number of positions6
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.2 Nm (M8 connectors)

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y
Conductor cross section6x 0.25 mm² (Signal line)
AWG signal line24
Conductor structure signal line32x 0.10 mm
Core diameter including insulation1.17 mm ±0.02 mm
Thickness, insulation≥ 0.21 mm (Core insulation)
Wire colorsbrown, white, blue, black, gray, pink
Overall twistSix cores around the filler to the core
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 0.7 mm
External cable diameter5.00 mm
External cable diameter D5 mm ±0.15 mm
Cable weight34 kg/km
Outer sheath, materialPUR
Material, fillerPE
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance78 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flame resistancein accordance with DIN UL-Style 20549
Halogen-freein accordance with DIN VDE 0472 part 815
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1522105 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 6
Type of electrical connection, field-sided (EF005525) M8
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuZn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated current In (EF008250) 1.5 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65
