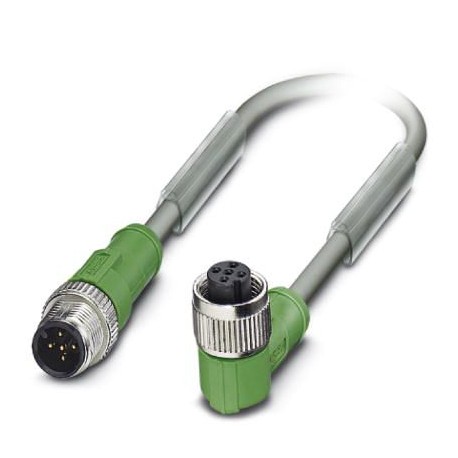

PHOENIX CONTACT SAC-5P-M12MS/ 1,5-802/M12FR SAC-5P-M12MS/ 1,5-802/M12FR 1454532 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-M12MS/ 1,5-802/M12FR 1454532 PHOENIX CONTACT Sensor/actuator cable

SAC-5P-M12MS/ 1,5-802/M12FR

1454532

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 5-pole, halogen-free, solder-resistant, highly flexible, grey RAL 7001, M12 straight male connector, coding: A, to M12 angled connection female, coding: A, cable length: 1.5 m, for robotics and drag chains

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1454532
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 209 (C-2-2017)
GTIN4046356578233
Weight per Piece (excluding packing)78.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable1.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Cable

NoteDue to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments.
Cable typePUR, halogen-free, highly stranded, resistant to welding sparks, gray
Cable type (abbreviation)802
Cable abbreviationLi12Y11Y-HF
Conductor cross section5x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.3 mm ±0.05 mm (Signal line)
Wire colorsBlack, brown, blue, white, green/yellow
Overall twist5 wires around filler to the core
External sheath, colorgray RAL 7001
External cable diameter D5.1 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation5 x D
Number of bending cycles10000000
Minimum bending radius, drag chain applications7,5 x D
Traversing path5 m
Traversing rate3.3 m/s
Acceleration5 m/s²
Number of bending cycles15000000
Bending radius50 mm
Traversing path0.9 m
Traversing rate5 m/s
Acceleration30 m/s²
Torsion force± 360 °/m (1 000 000 torsion cycles)
Outer sheath, materialPUR
Material conductor insulationPES
Conductor materialBare Cu litz wires
Insulation resistance≥ 20 MΩ*km
Conductor resistanceapprox. 53 Ω/km
Nominal voltage, cable300 V
Test voltage, cable1200 V
Special propertiesCable jacket is welding spark-resistant, recyclable, matt, low-adhesion, abrasion-resistant, flame-retardant, and self-extinguishing
Free from silicone and cadmium
Free of substances which would hinder coating with paint or varnish
Flame resistanceDIN VDE 0472 part 804, test type B
IEC 60332-1
in acc. with UL FT-2
Halogen-freeThe cable is halogen-free
Resistance to oilaccording to VDE 0472 Part 803
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Silicone-free
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (cable, flexible installation)
to 120 °C (for 3000 h)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1454532 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 1.5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
