SAC-5P-M 8MSB/ 1,5-115 1404461 PHOENIX CONTACT Sensor/actuator cable

SAC-5P-M 8MSB/ 1,5-115

1404461

PHOENIX CONTACT

1 Pcs.

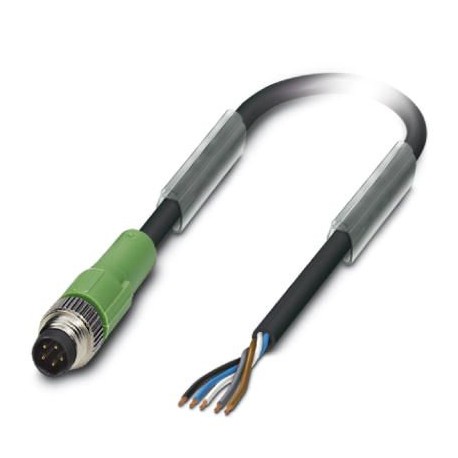

Sensor/actuator cable Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, M8 straight male connector, coding: B, to free cable end, cable length: 1.5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1404461
Packing unit1 pc
Catalog pagePage 206 (C-2-2017)
GTIN4046356696807
Weight per Piece (excluding packing)50.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable1.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C3 A
Rated voltage30 V AC
30 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingB - inverse
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.2 Nm (M8 connectors)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)115
Cable abbreviationLi9Y11Y
UL AWM style20549
Conductor cross section0.25 mm²
AWG signal line24
Conductor structure signal line32x 0.10 mm
Core diameter including insulation1.17 mm ±0.02 mm
Thickness, insulationapprox. 0.21 mm (Core insulation)
approx. 0.7 mm (Outer cable sheath)
Wire colorsBrown, white, blue, black, gray
Overall twist5 cores, twisted
Length of twist, overall twist75 mm
External sheath, colorblack-gray RAL 7021
External cable diameter D4.7 mm ±0.15 mm
Smallest bending radius, fixed installation23.5 mm
Smallest bending radius, movable installation47 mm
Number of bending cycles4000000
Bending radius47 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight30 kg/km
Outer sheath, materialPUR
Material, fillerPP
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km
Conductor resistance≤ 75 Ω/km
Nominal voltage, cable≤ 300 V (AC)
Test voltage, cable≥ 3000 V (AC)
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1404461 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M8
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 1.5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 3 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65
