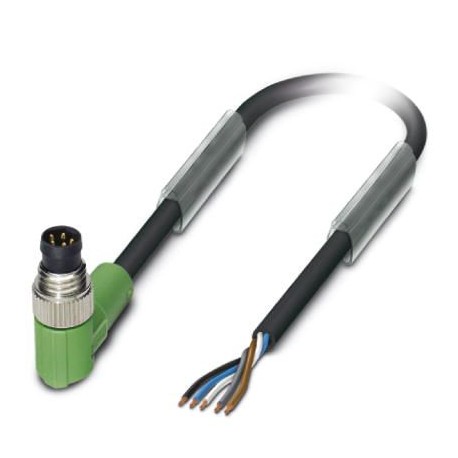

PHOENIX CONTACT SAC-5P-M 8MRB/ 3,0-115 SAC-5P-M 8MRB/ 3,0-115 1404466 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-M 8MRB/ 3,0-115 1404466 PHOENIX CONTACT Sensor/actuator cable

SAC-5P-M 8MRB/ 3,0-115

1404466

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/Actuator Cable, 5-Pole, M8 Elbow Connector, Coding: B, A Free Cable End, Cable Length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1404466
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 206 (C-2-2017)
GTIN4046356696852
Weight per Piece (excluding packing)91.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable3 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C3 A
Rated voltage30 V AC
30 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingB - inverse
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.2 Nm (M8 connectors)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)115
Cable abbreviationLi9Y11Y
UL AWM style20549
Conductor cross section0.25 mm²
AWG signal line24
Conductor structure signal line32x 0.10 mm
Core diameter including insulation1.17 mm ±0.02 mm
Thickness, insulationapprox. 0.21 mm (Core insulation)
approx. 0.7 mm (Outer cable sheath)
Wire colorsBrown, white, blue, black, gray
Overall twist5 cores, twisted
Length of twist, overall twist75 mm
External sheath, colorblack-gray RAL 7021
External cable diameter D4.7 mm ±0.15 mm
Smallest bending radius, fixed installation23.5 mm
Smallest bending radius, movable installation47 mm
Number of bending cycles4000000
Bending radius47 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight30 kg/km
Outer sheath, materialPUR
Material, fillerPP
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km
Conductor resistance≤ 75 Ω/km
Nominal voltage, cable≤ 300 V (AC)
Test voltage, cable≥ 3000 V (AC)
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
