View larger
Images are for illustrative purposes only. Please refer to data sheet for details

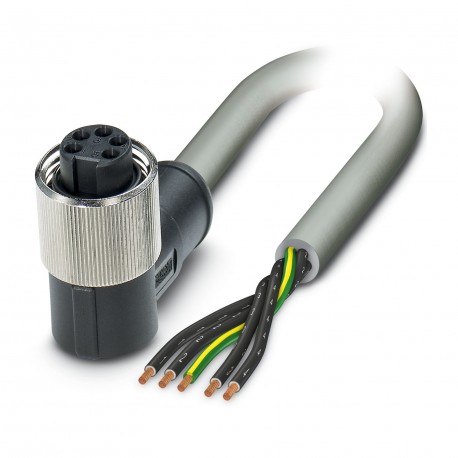

SAC-5P- 5,0-440/MINFR PWR 1443776 PHOENIX CONTACT Power cable
SAC-5P- 5,0-440/MINFR PWR
1443776
PHOENIX CONTACT
1 Pcs.
Power cable
Power cable, 5-position, PUR, gray RAL 7001, free cable end, on Socket angled 7/8"-16UNF, coding: A, cable length: 5 m, 1.5 mm2 conductor cross section, For power supply
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Sensor/actuator cable |
| Application | Power supply |
| Number of positions | 5 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Material of grip body | TPU |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Rated surge voltage | 4000 V |
| Insulation resistance | ≥ 10 MΩ |
| Nominal voltage UN | 63 V DC |
| Nominal current IN | 10 A |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
Signaling
| Status display | no |
| Status display present | No |
Connector
| Connection 1 | |
| Type | free cable end |
| Connection 2 | |
| Type | Socket angled 7/8"-16UNF |
| Number of positions | 5 |
| Coding type | A |
Cable/line
| Cable length | 5 m |
| PUR/PVC gray [440] | |
| Dimensional drawing |  |
| Cable weight | 140 kg/km |
| UL AWM Style | 20234 (80 °C / 600 V) |
| Number of positions | 5 |
| Shielded | no |
| Cable type | PUR/PVC gray [440] |
| AWG signal line | 16 |
| Conductor cross section | 5x 1.5 mm² |
| External cable diameter | 9.70 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | gray RAL 7001 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black 1, black 2, black 3, black 4, green/yellow |
| Overall twist | 5 cores, twisted |
| Max. conductor resistance | 13.3 Ω/km |
| Nominal voltage, cable | 500 V AC |
| Test voltage | 4000 V AC |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 15 x D |
| Smallest bending radius, fixed installation | 73 mm |
| Smallest bending radius, movable installation | 146 mm |
| Flame resistance | in accordance with EN 60332-1-2 |
| in acc. to UL VW1 | |
| According to CSA FT1 | |
| Resistance to oil | According to HD 22.10 |
| according to VDE 0282 Part 10 | |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| 5 °C ... 90 °C (Cable, flexible installation) | |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| IP68 | |
| Ambient temperature (operation) | -40 °C ... 90 °C (Socket) |
| -40 °C ... 90 °C (cable, fixed installation) | |
| 5 °C ... 90 °C (Cable, flexible installation) | |
