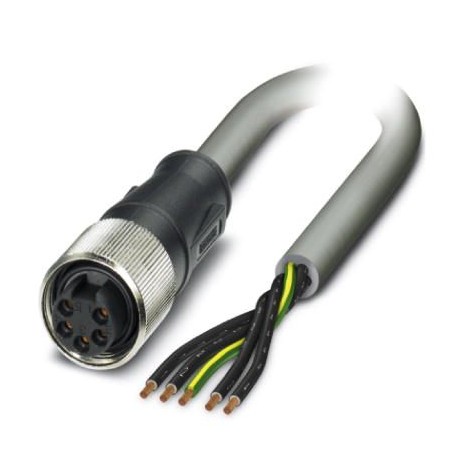

SAC-5P- 1,5-440/MINFS PWR 1443705 PHOENIX CONTACT Power cable
SAC-5P- 1,5-440/MINFS PWR
1443705
PHOENIX CONTACT
1 Pcs.
Power cable
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1443705 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 276 (C-4-2015) |
| GTIN | 4046356537278 |
| Weight per Piece (excluding packing) | 270.400 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 90 °C (Socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 | |
| IP68 |
General
| Rated current at 40°C | 10 A |
|---|---|
| Rated voltage | 63 V DC |
| Rated surge voltage | 4000 V |
| Number of positions | 5 |
| Color handle area | black |
| Insulation resistance | ≥ 10 MΩ |
| Coding | A - standard |
| Status display | No |
| Protective circuit/component | unwired |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 5 |
| Insertion/withdrawal cycles | 100 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | AU |
| Contact carrier material | PA 6.6 |
| Material of grip body | TPU |
| Material, knurls | Zinc die-cast, nickel-plated |
Standards and Regulations
| Flame resistance | in acc. to UL VW1 |
|---|---|
| IEC 60332-1-2 | |
| Flammability rating according to UL 94 | HB |
Cable
| Cable type | PUR/PVC gray |
|---|---|
| Cable type (abbreviation) | 440 |
| UL AWM style | 20234 (80 °C / 600 V) |
| Conductor cross section | 5x 1.5 mm² |
| AWG signal line | 16 |
| Conductor structure, voltage supply | 30x 0.25 mm |
| Wire colors | Black 1, black 2, black 3, black 4, green/yellow |
| Overall twist | 5 cores, twisted |
| External sheath, color | gray RAL 7001 |
| External cable diameter D | 9.7 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 15 x D |
| Cable weight | 140 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Conductor resistance | 13.3 Ω/km |
| Nominal voltage, cable | 500 V AC |
| Test voltage, cable | 4000 V AC |
| Flame resistance | according to EN 60332-1-2 |
| in acc. to UL VW1 | |
| According to CSA FT1 | |
| Resistance to oil | According to HD 22.10 |
| according to VDE 0282 Part 10 | |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| 5 °C ... 90 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | DOTE 15571-58-1 |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
