PHOENIX CONTACT SAC-4P-M12MST/ 5,0-PUR SH SAC-4P-M12MST/ 5,0-PUR SH 1424122 PHOENIX CONTACT Power cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-M12MST/ 5,0-PUR SH 1424122 PHOENIX CONTACT Power cable

SAC-4P-M12MST/ 5,0-PUR SH

1424122

PHOENIX CONTACT

1 Pcs.

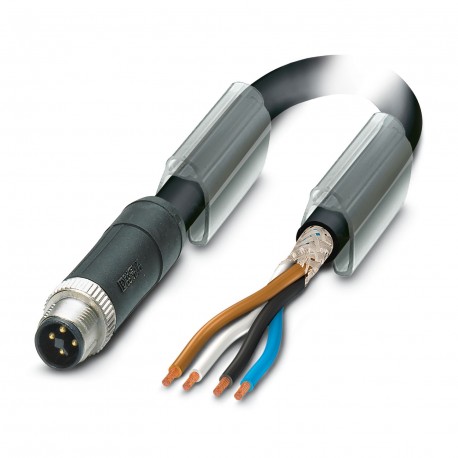

Power cable Power cable, 4-pole halogen-free, shielded (Advanced Shielding Technology), Straight M12 connector, coding: T, to free cable end, cable length: 5 m, for direct current up to 12 A/63 V Power cable, 4-position, PUR halogen-free, black RAL 9005, shielded (Advanced Shielding Technology), Plug straight M12, coding: T, on free cable end, cable length: 5 m, For direct current up to 12 A/63 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePower cable
ApplicationPower supply
Number of positions4
No. of cable outlets1
Shieldedyes
CodingT
Data management status
Article revision06
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Material of grip bodyPP
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN63 V DC
Nominal current IN12 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles> 100
Connector
Connection 1
TypePlug straight M12
Coding typeT (Power)
Connection 2
Typefree cable end
Cable/line
Cable length5 m
PUR halogen-free black [PUR]
Dimensional drawinguohajbpigh.jpg
Cable weight133 kg/km
UL AWM Style20233 / 10493 (80°C/300 V)
Number of positions4
Shieldedyes
Cable typePUR halogen-free black [PUR]
Conductor cross section4x 1.5 mm²
Wire diameter incl. insulation2.4 mm
External cable diameter9.70 mm ±0.3 mm
Outer sheath, materialPUR
External sheath, colorblack RAL 9005
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, white, blue, black
Thickness, insulation1.20 mm (Outer cable sheath)
Overall twist4 wires optimally twisted
Max. conductor resistance≤ 13.3 Ω/km (at 20 °C)
Insulation resistance≥ 10 MΩ*km (at 20 °C)
Nominal voltage, cable300 V AC
Test voltage1500 V AC (5 min.)
Smallest bending radius, fixed installation49 mm
Smallest bending radius, movable installation73 mm
Dynamic load capacity (bending)Max. bending cycles: 4000000, Bending radius: 97 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Dynamic load capacity (torsion)Torsion: ±25 °/m
Halogen-freein accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Flame resistancein accordance with EN 60332-1-2
in acc. to UL 1581 VW1
Resistance to oilin accordance with DIN EN 60811-2-1
According to DIN EN 50363-10-2
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-111

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
