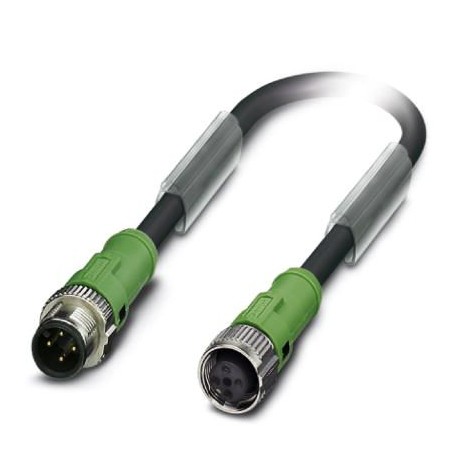

PHOENIX CONTACT SAC-4P-MS/ 0,5-186/FS SCO SAC-4P-MS/ 0,5-186/FS SCO 1555693 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-MS/ 0,5-186/FS SCO 1555693 PHOENIX CONTACT Sensor/actuator cable

SAC-4P-MS/ 0,5-186/FS SCO

1555693

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 4-pole, PUR, grayish black RAL 7021, M12 SPEEDCON straight male connector, coding: A, to M12 SPEEDCON straight connection female, coding: A

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1555693
Packing unit1 pc
Catalog pagePage 440 (C-2-2017)
GTIN4046356173698
Weight per Piece (excluding packing)49.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage250 V AC
250 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typePUR POWER 0.75 mm² black
Cable type (abbreviation)186
Cable abbreviationLiY11Y
UL AWM style20549 / 1061 (80°C/300 V)
Conductor cross section4x 0.75 mm² (power line)
AWG signal line18
Conductor structure signal line42x 0.15 mm
Core diameter including insulation1.75 mm ±0.05 mm
Thickness, insulation≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
External sheath, colorblack-gray RAL 7021
External cable diameter D5.9 mm ±0.15 mm
Smallest bending radius, movable installation59 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Bending radius59 mm
Traversing path5 m
Traversing rate3 m/s
Acceleration5 m/s²
Cable weight57 kg/km
Outer sheath, materialPUR
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 MΩ*km (at 20 °C)
Conductor resistancemax. 26 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1555693 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -25 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Degree of protection (IP) (EF005474) IP65
