PHOENIX CONTACT SAC-4P-M12MRT/ 5,0-PUR SH SAC-4P-M12MRT/ 5,0-PUR SH 1424126 PHOENIX CONTACT Power cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-M12MRT/ 5,0-PUR SH 1424126 PHOENIX CONTACT Power cable

SAC-4P-M12MRT/ 5,0-PUR SH

1424126

PHOENIX CONTACT

1 Pcs.

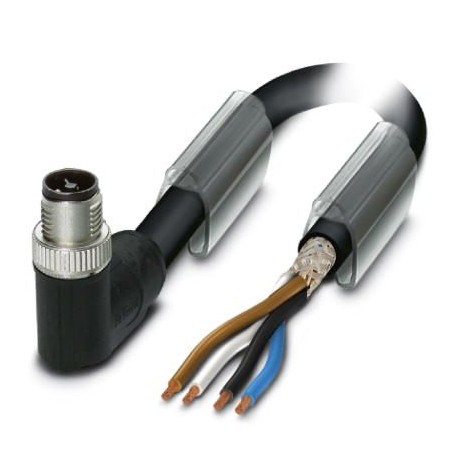

Power cable Power cable, 4-pole halogen-free, shielded (Advanced Shielding Technology), M12 angled connector, coding: T, to free cable end, cable length: 5 m, for direct current up to 12 A/63 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1424126
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 295 (C-2-2017)
GTIN4046356693301
Weight per Piece (excluding packing)771.800 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C12 A
Rated voltage63 V DC
Number of positions4
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingT power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPA
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-111
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLS9YC11Y-OB
Conductor cross section4x 1.5 mm²
AWG power supply16
Core diameter including insulation2.4 mm
Thickness, insulation1.2 mm (Outer cable sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires optimally twisted
ShieldingTinned copper-braided shield, approx. 85% covering
External sheath, colorblack RAL 9005
External cable diameter D9.7 mm ±0,3 mm
Smallest bending radius, fixed installation49 mm
Smallest bending radius, movable installation73 mm
Number of bending cycles4000000
Bending radius97 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Torsion force± 25 °/m
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 MΩ*km (at 20 °C)
Conductor resistance≤ 13.3 Ω/km (at 20 °C)
Nominal voltage, cable300 V AC
Test voltage, cable1500 V AC (5 min.)
Flame resistanceaccording to EN 60332-1-2
in acc. to UL 1581 VW1
Halogen-freeaccording to VDE 0282-13 Appendix C
Resistance to oilin accordance with DIN EN 60811-2-1
According to DIN EN 50363-10-2
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCDOTE 15571-58-1
Lead 7439-92-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1424126 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Angled
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated voltage (EF000228) 63 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
