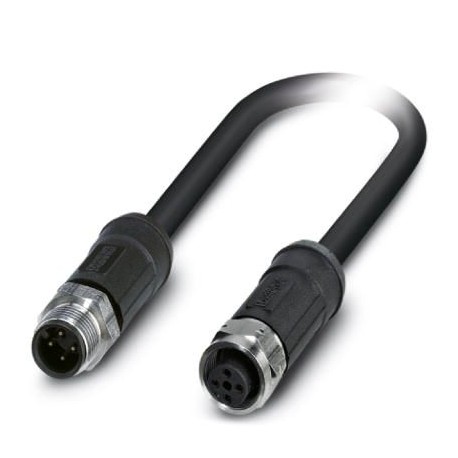

SAC-4P-M12MS/5,0-28X/M12FSSHOD 1454192 PHOENIX CONTACT Sensor/actuator cable

SAC-4P-M12MS/5,0-28X/M12FSSHOD

1454192

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/Actuator Cable, 4-Pole, Halogen-Free, PE-X/PE-X Halogen-Free, Grey-Black RAL 7021, Shielded, M12 Straight Male Connector, Encoding: A, to M12 Straight Connection Female, Coding: A, Cable Length: 5 m, Outdoor Applications, with Stainless Steel Knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1454192
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 154 (C-4-2013)
GTIN4046356568807
Weight per Piece (excluding packing)403.700 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-40 °C ... 105 °C (Plug / socket)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4))
Degree of protectionIP65
IP67
IP68
IP69K

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel
Sealing materialFPM

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typePE-X black
Cable type (abbreviation)28X
Cable abbreviationLi2X2X-C-Vl-2X
Conductor cross section4x 0.5 mm² (Signal line)
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.6 mm ±0.05 mm (Signal line)
Thickness, insulationapprox. 0.3 mm (Core insulation)
approx. 0.7 mm (Outer cable sheath)
approx. 0.45 mm (Inner sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
Length of twist, overall twist108.8 mm
ShieldingBraided copper wires
Optical shield covering85 %
External sheath, colorblack-gray RAL 7021
External cable diameter D6.8 mm ±0.2 mm
Smallest bending radius, fixed installation34 mm
Smallest bending radius, movable installation68 mm
Number of bending cycles1000000
Bending radius68 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight74 kg/km
Outer sheath, materialPE-X
Material, inner sheathPE-X
Material conductor insulationPE-X
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance≤ 39 Ω/km (at 20 °C)
Cable capacity≤ 100 nF/km (Conductor-conductor, asymmetrical/touching)
≤ 85 nF/km (Conductor-conductor, symmetrical/star quad)
≤ 150 nF/km (Wire/shield)
Conductor inductance0.64 mH/km (at 1 kHz)
0.46 mH/km (at 10 MHz)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC
Special propertiesIrradiated
Flame resistanceaccording to DIN 60332-1-2
according to DIN EN 50266-2-5
Halogen-freein accordance with DIN VDE 0472 part 815
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceUV resistant according to DIN VDE 0276-605
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1454192 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) Yes
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -15 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
