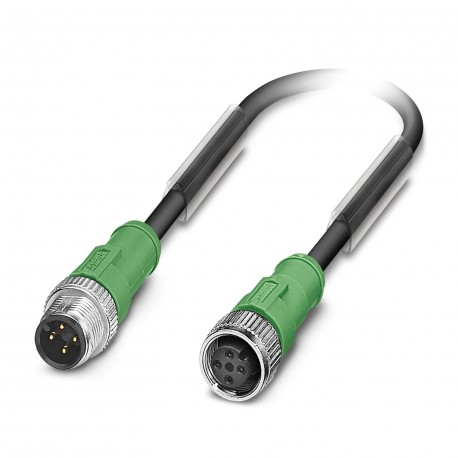

PHOENIX CONTACT SAC-4P-M12MS/ 3,0-PUR/M12FS SAC-4P-M12MS/ 3,0-PUR/M12FS 1668386 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-M12MS/ 3,0-PUR/M12FS 1668386 PHOENIX CONTACT Sensor/actuator cable

SAC-4P-M12MS/ 3,0-PUR/M12FS

1668386

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 4-pole, halogen-free PUR, grayish black RAL 7021, M12 straight male connector, encoding: A, to M12 straight connection female, encoding: A, cable length: 3 m Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationStandard
Number of positions4
No. of cable outlets1
Shieldedno
CodingA
Data management status
Article revision11
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 10 MΩ
Nominal voltage UN250 V AC
250 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.4 Nm (M12 connector)
Connector
Connection 1
TypePlug straight M12
Number of positions4
Coding typeA
Connection 2
TypeSocket straight M12
Number of positions4
Coding typeA
Cable/line
Cable length3 m
PUR halogen-free black [PUR]
Dimensional drawingnnlrkzcsrh.jpg
Cable weight30 kg/km
UL AWM Style20549 / 10493 (80°C/300 V)
Number of positions4
Shieldedno
Cable typePUR halogen-free black [PUR]
Conductor structure signal line42x 0.10 mm
AWG signal line22
Conductor cross section4x 0.34 mm² (Signal line)
Wire diameter incl. insulation1.27 mm ±0.02 mm
External cable diameter4.20 mm ±0.15 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, white, blue, black
Thickness, insulation≥ 0.21 mm
Thickness, outer sheathapprox. 0.50 mm
Overall twist4 wires, twisted
Max. conductor resistance≤ 58 Ω/km
Insulation resistance≥ 1 GΩ*km
Nominal voltage, cable≤ 300 V
Test voltage≥ 3000 V
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation21 mm
Smallest bending radius, movable installation42 mm
Dynamic load capacity (bending)Max. bending cycles: 10000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Flame resistancein accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Low adhesion
abrasion-resistant
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
flexible
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (Cable, flexible installation)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1668386 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Degree of protection (IP) (EF005474) IP65
