SAC-4P-M12MS/10,0-600 HD 1403951 PHOENIX CONTACT Sensor/actuator cable

SAC-4P-M12MS/10,0-600 HD

1403951

PHOENIX CONTACT

1 Pcs.

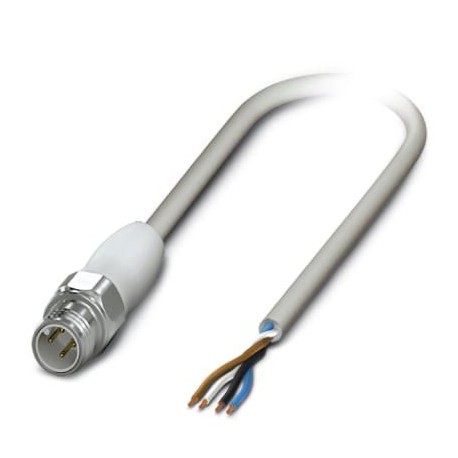

Sensor/actuator cable Sensor/actuator cable, 4-pole, PP-EPDM, grey RAL 7035, Straight male connector M12, coding: A, to free cable end, cable length: 10 m, Hygienic design, with stainless steel knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1403951
Packing unit1 pc
Catalog pagePage 142 (C-4-2013)
GTIN4046356677073
Weight per Piece (excluding packing)271.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable10 m

Ambient conditions

Ambient temperature (operation)-40 °C ... 105 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68
IP69K

General

Rated current at 40°C4 A
Rated voltage250 V AC
250 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Material conformance FDA 21 CFR 177.2600
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Standard designationMaterial conformance
Standards/regulationsFDA 21 CFR 177.2600

Cable

Cable typeHalogen-free PP gray
Cable type (abbreviation)600
Cable abbreviationLi9Y9Y
Conductor cross section4x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm (Core insulation)
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
Length of twist, overall twist48 mm
External sheath, colorgray RAL 7035
Outer sheath thicknessapprox. 0.8 mm
External cable diameter D4.7 mm ±0.15 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles4000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Torsion force± 270 °/m (4,000,000 torsion cycles, max. 25 torsion cycles/min)
Cable weight30 kg/km
Outer sheath, materialPP-EPDM
Material conductor insulationPP
Conductor materialBare Cu litz wires
Conductor resistance58 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Special propertiesFDA compliant according to FDA 21 CFR 177.2600
highly flexible
Flexible cable conduit capable
Halogen-freein accordance with DIN VDE 0472 part 815
Other resistanceResistant to cold bending and cold impacts According to DIN EN 60811-1-4 (-40 °C)
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-25 °C ... 105 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1403951 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Degree of protection (IP) (EF005474) IP65
