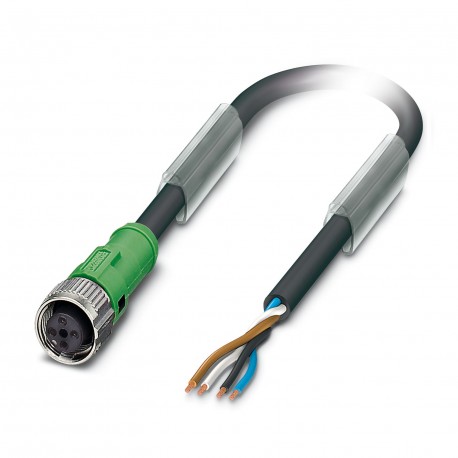

SAC-4P-2,0-186/FS SCO 1555648 PHOENIX CONTACT Sensor/actuator cable

SAC-4P-2,0-186/FS SCO

1555648

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/Actuator Cable, 4-Pole, PUR, Grey-Black RAL 7021, Free Cable End, to Straight Connecting Female M12 SPEEDCON, Coding: A Sensor/actuator cable, 4-position, PUR, black-gray RAL 7021, free cable end, on Socket straight M12 SPEEDCON, coding: A, cable length: 2 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationStandard
Number of positions4
No. of cable outlets1
Shieldedno
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN250 V AC
250 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.4 Nm
Connector
Connection 1
Typefree cable end
Connection 2
TypeSocket straight M12 SPEEDCON
Number of positions4
Locking typeSPEEDCON
Coding typeA
Cable/line
Cable length2 m
PUR POWER 0.75 mm² black [186]
Dimensional drawingeylnfibszd.jpg
Cable weight57 kg/km
UL AWM Style20549 / 1061 (80°C/300 V)
Number of positions4
Shieldedno
Cable typePUR POWER 0.75 mm² black [186]
Conductor structure signal line42x 0.15 mm
AWG signal line18
Conductor cross section4x 0.75 mm² (power line)
Wire diameter incl. insulation1.75 mm ±0.05 mm
External cable diameter5.90 mm ±0.15 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPVC
Single wire, colorbrown, white, blue, black
Thickness, insulation≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
Overall twist4 wires, twisted
Max. conductor resistancemax. 26 Ω/km (at 20 °C)
Insulation resistance≥ 1 MΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage≥ 3000 V
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation30 mm
Smallest bending radius, movable installation59 mm
Dynamic load capacity (bending)Max. bending cycles: 2000000, Bending radius: 59 mm, Traversing path: 5 m, Traversing rate: 3 m/s, Acceleration: 5 m/s²
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (Cable, flexible installation)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1555648 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -25 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Degree of protection (IP) (EF005474) IP65
