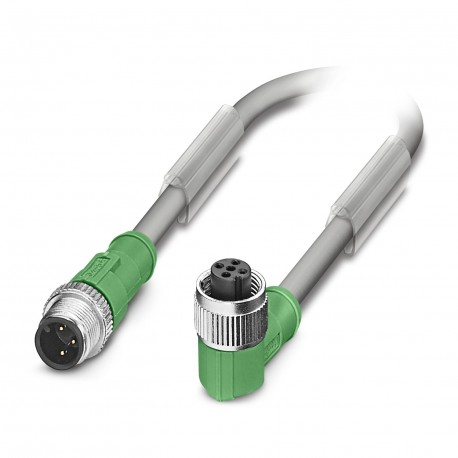

Sensor/actuator cable Sensor/actuator cable, 3-pole, halogen-free, solder-resistant, highly flexible, grey RAL 7001, M12 straight male connector, coding: A, to M12 angled connection female, coding: A, cable length: 3 m, for robotics and drag chains Sensor/actuator cable, 3-position, PUR halogen-free, resistant to welding sparks, highly flexible, gray RAL 7001, Plug straight M12, coding: A, on Socket angled M12, coding: A, cable length: 3 m, for robots and drag chains

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationRobots and drag chains
Number of positions3
No. of cable outlets1
Shieldedno
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN250 V AC
250 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.4 Nm (M12 connector)
Connector
Connection 1
TypePlug straight M12
Number of positions3
Coding typeA
Connection 2
TypeSocket angled M12
Number of positions3
Coding typeA
Cable/line
Cable length3 m
Gray, highly flexible PUR [800]
Dimensional drawingdvdkyimven.jpg
NoteDue to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments.
Cable weight28.3 kg/km
UL AWM Style20549
Number of positions3
Shieldedno
Cable typeGray, highly flexible PUR [800]
Conductor structure signal line42x 0.10 mm
AWG signal line22
Conductor cross section3x 0.34 mm² (Signal line)
Wire diameter incl. insulation1.3 mm ±0.05 mm (Signal line)
External cable diameter4.50 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorgray RAL 7001
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, blue, black
Overall twist3 wires, twisted
Max. conductor resistanceapprox. 53 Ω/km
Insulation resistance≥ 20 MΩ*km
Nominal voltage, cable300 V
Test voltage2000 V
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation7.5 x D
Smallest bending radius, fixed installation18 mm
Smallest bending radius, movable installation34 mm
Dynamic load capacity (bending)Max. bending cycles: 10000000, Bending radius: 7,5 x D, Traversing path: 5 m, Traversing rate: 3.3 m/s, Acceleration: 5 m/s²
Max. bending cycles: 15000000, Bending radius: 50 mm, Traversing path: 0.9 m, Traversing rate: 5 m/s, Acceleration: 30 m/s²
Dynamic load capacity (torsion)Torsion: ±360 °/m, Torsion cycles: 1000000
Halogen-freein accordance with DIN VDE 0472 part 815
Flame resistancein accordance with UL 758/1581 FT2
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Silicone-free
Special propertiesCable jacket is welding spark-resistant, recyclable, matt, low-adhesion, abrasion-resistant, flame-retardant, and self-extinguishing
Free from silicone and cadmium
Free of substances which would hinder coating with paint or varnish
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (Cable, flexible installation)
to 120 °C (for 3000 h)
to 90 °C (in acc. with UL)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

Product Datasheet
